The LZR®-FLATSCAN REV PZ is the first laser safety sensor specifically designed for automatic revolving door needs. It uses time-of-flight technology and it generates 400 measurement points to provide a complete protection for users while ensuring the effective functionning of the door.
Independent of floor and environment
Laser technology guarantees stable functioning whatever the type of flooring (slatted floors, wire mesh, absorbent carpet, reflective flooring, slippery surface, etc.) and weather conditions.
Fast, intuitive installation

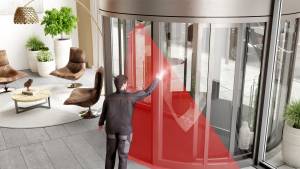

The size of the detection field is defined by two simple hand movements. The height and the width of the area are automatically calculated.
Visual aids

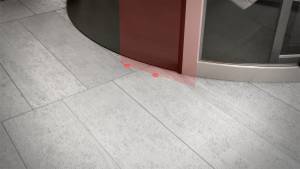

Two visible beams could be activated during the installation process to adjust the position of the detection field.
Two areas
When needed, two areas can be assigned to separate outputs to provide different functions (ex. slow down and stop).
| Technology | LASER scanner, time-of-flight measurement | |
| Emission characteristics IR LASER | Wavelength 905 nm; max. output pulse power 25 W (CLASS 1) Wavelength 650 nm; max. output CW power 3 mW (CLASS 3R) visible spots. | |
| Opening Angle | 90° | |
| Angular resolution | 0.23° ( 400 spots within 90° ) | |
| Max. detection range | 4m ( height ) with reflectivity of 5% 5m ( height ) with reflectivity of 8% | |
| Supply voltage | 12-24V DC ± 15% | |
| Response time | Max. 90 ms | |
| Output | 1 optocoupler ( galvanic isolation - polarity free ) Max. switching voltage: 42V AC/ 60V DC Max. switching current: 100 mA 1 Relay ( free of potential change-over contact ) Max. contact voltage: 60V AC / 125V DC Max. contact current: 1.0A ( resistive ) Max. switching power: 30W ( DC ) / 60VA ( AC ) | |
| Dimensions | 178 mm (L) × 85 mm (H) × 53 mm (D) | |
| Tilt angles | 0° to +5° | |
| Protection degree | IP54 ( EN 60529 ) | |
| Temperature range | -30°C to +60°C if powered | |
| Humidity | -95% non-condensing | |
| Vibrations | < 2 G | |
| Conformity | This product conforms to all applicable European Union legislation. Please refer to the Declaration of Conformity for further information. |

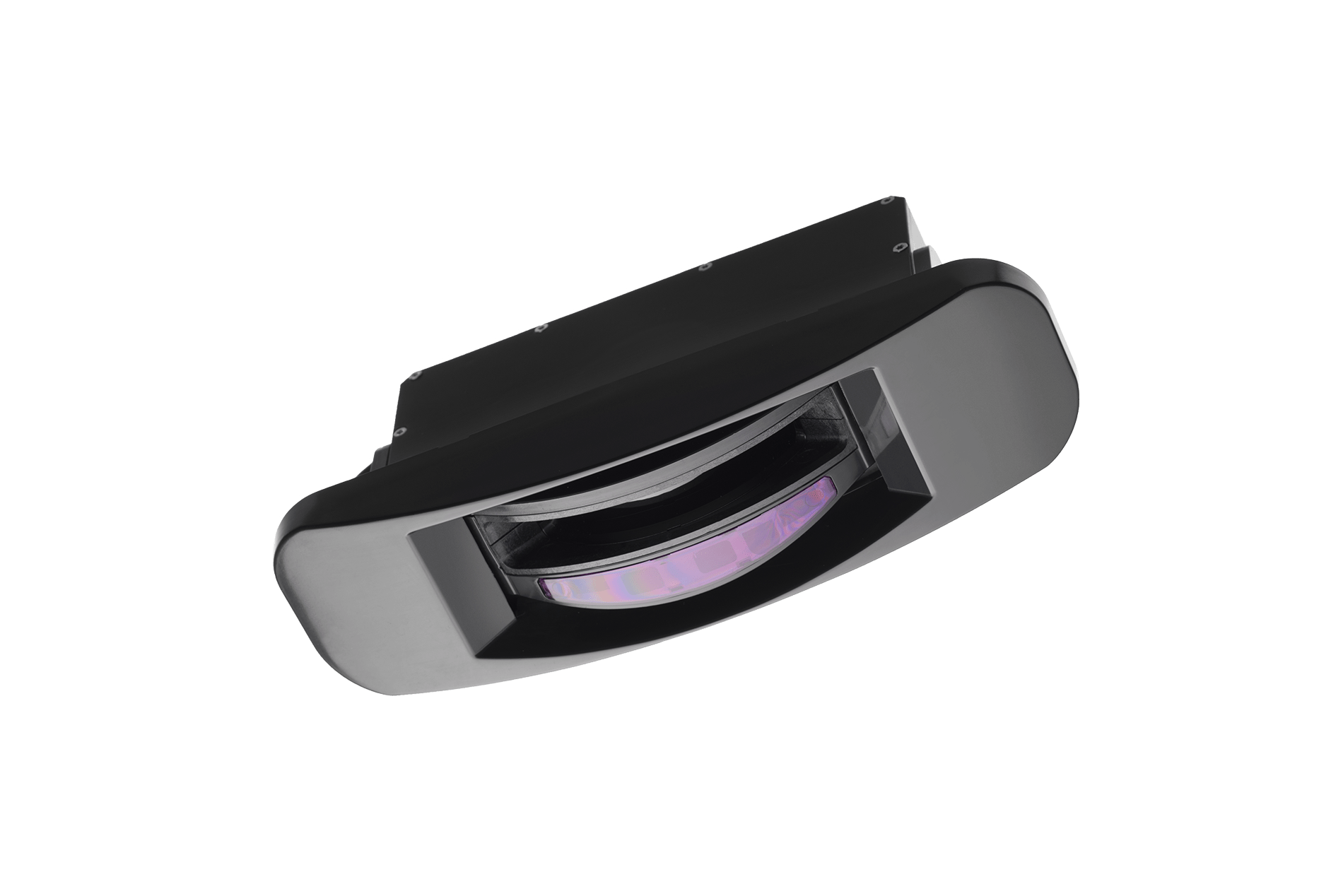

LZR®-FLATSCAN REV PZ RECESSED

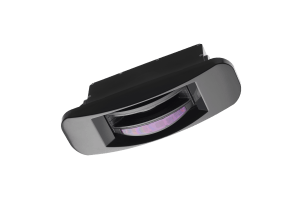

Recessed version
LZR®-FLATSCAN REV PZ SURFACE

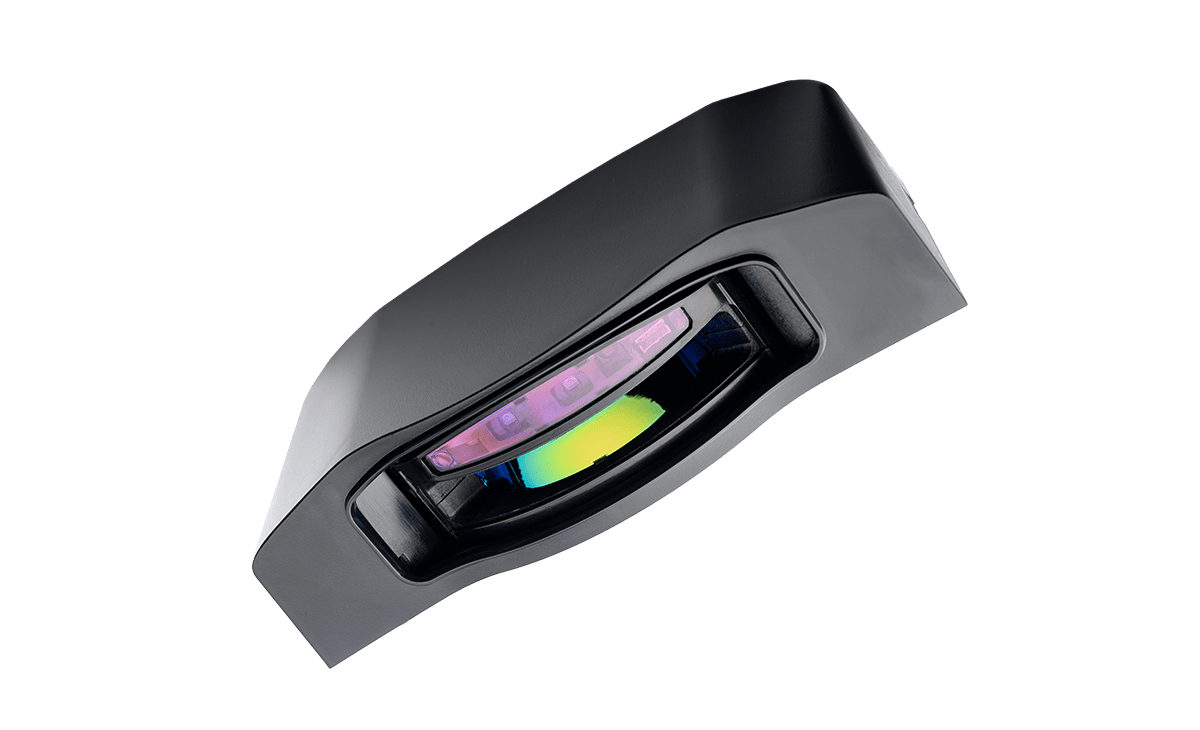

Surface version
