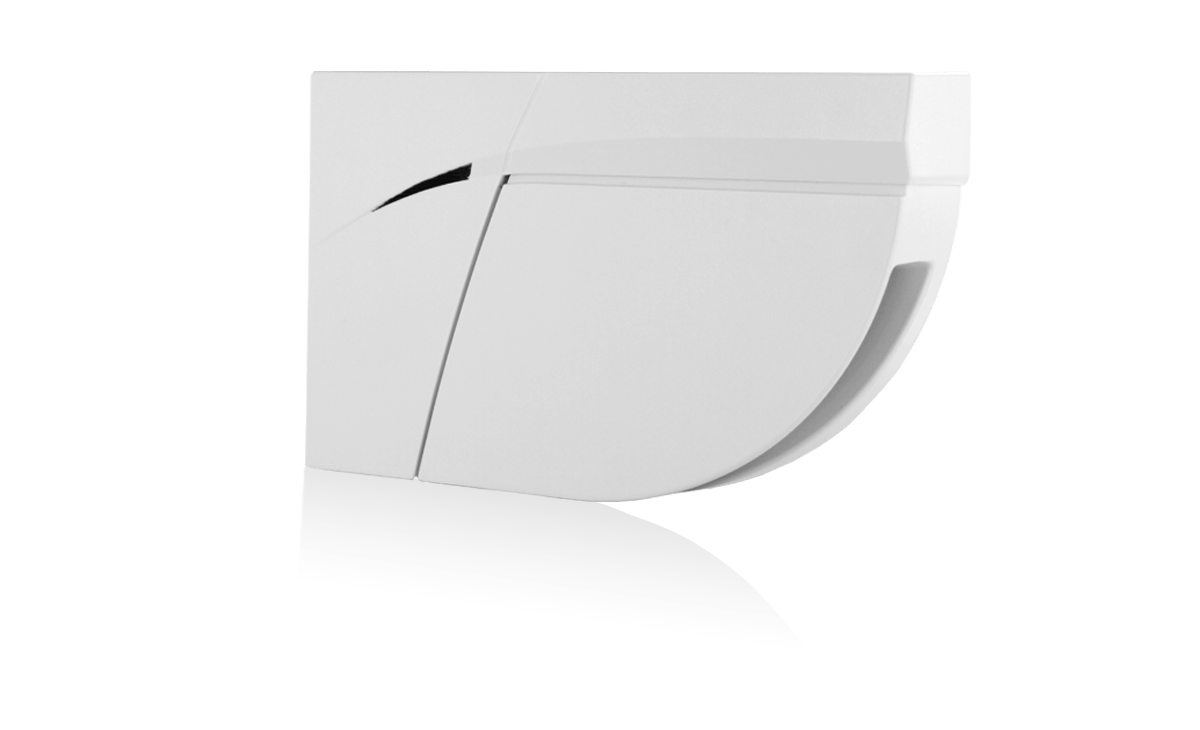

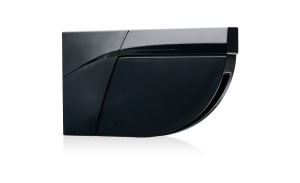

The easy-to-install FLATSCAN SW uses time-of-flight laser technology for swing doors to generate 170 measurement points that provide a complete protection for swing doors and their users. A single FLATSCAN SW covers the entire door wing including the hinge area.

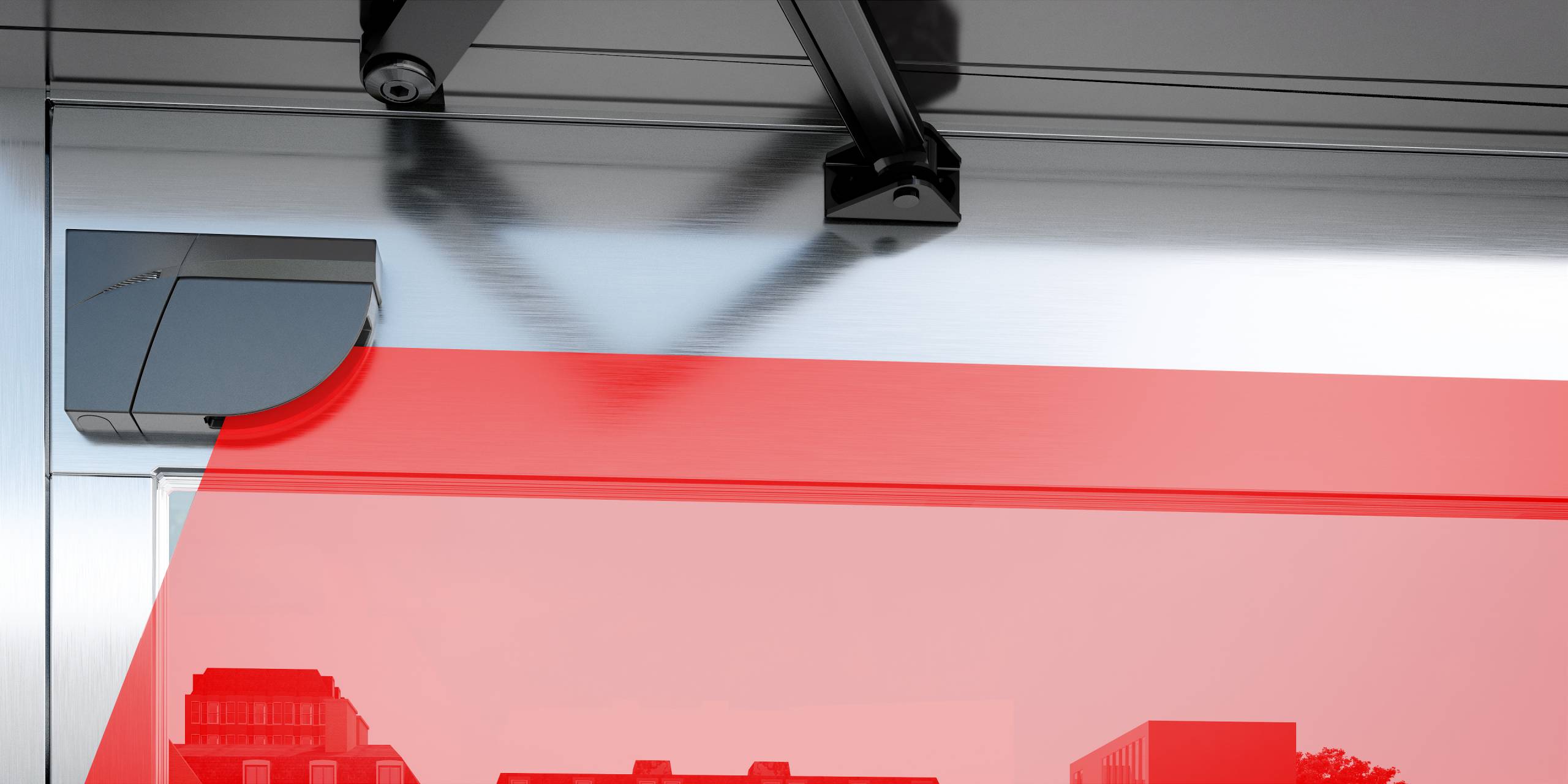

Compact design
The FLATSCAN SW can be used on any size of swing door. Thanks to its compact
design (8.5 cm × 14.2 cm) it can be stocked and stored easily.
Independent of floor and surroundings
Laser technology guarantees independence of all type of flooring (slatted floors, wire mesh, absorbent carpet, reflective flooring, slippery surface, etc.) and the direct surroundings of the door (handrail, walls, radiators, dustbins, etc.).

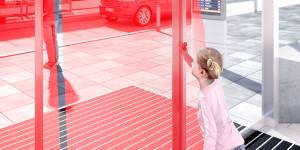

Pinch zone safety
The FLATSCAN SW covers the hinge area of a door to protect hands and fingers during the closing process. It counts 100 points, divided over 16° in the pinch zone.

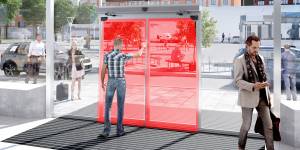

Fast & intuitive installation
The size of the sensor area is defined by hand movement. Products do not have to be cut anymore to fit the doorframe.
| Technology | LASER scanner, time-of-flight measurement |
| Detection mode | 4 m (diagonal) with reflectivity of 2% (i.e. : at W = 1.5m -> max. H = 3.7 m) |
| Opening angle | Door wing safety: 90° / Pinch zone safety: 16° |
| Angular resolution | Door wing safety: 1.3°/ Pinch zone safety: 0.2° |
| Typ. min. object size | Door wing safety: 10 cm @ 4m (in proportion to object distance, DIP 2 = ON) Pinch zone safety: 2 cm @ 4m (in proportion to object distance, DIP 2 = ON |
| Testbody | 700 mm × 300 mm × 200 mm (testbody CA according to EN 16005 & DIN 18650) |
| Emission characteristics | IR LASER: Wavelength 905 nm; max. output pulse power 25 W; Class 1 |
| Supply voltage | 12 - 24 V DC ± 15 % |
| Power consumption | ≤ 2 W |
| Response time | Door wing safety: max. 50 ms / Pinch zone safety: max. 90 ms |
| Output Max. switching voltage Max. switching current | 2 electronic relays (galvanic isolation - polarity free) 42V AC/DC 100 mA |
| LED-signals | 1 bi-coloured LED: detection/output status |
| Dimensions | 142 mm (L) × 85 mm (H) × 33 mm (D) ( mounting bracket + 7 mm ) |

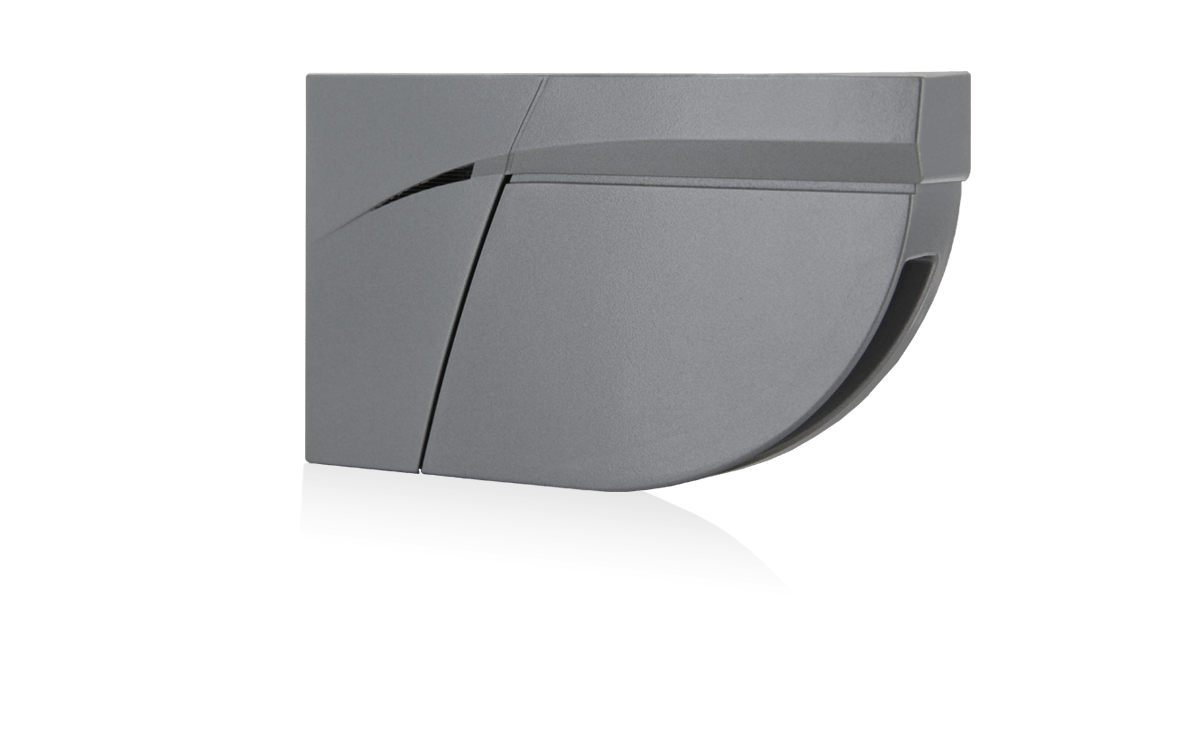

| Material - Colour | PC/ASA - Black - Aluminium - White |
| Tilt angles | +2° à +10° (without mounting bracket) |
| Protection degree | IP54 (EN 60529) |
| Temperature range | -30°C to +60°C if powered |
| Humidity | 0-95 % non-condensing |
| Vibrations | < 2 G |
| Min. door wing speed | 2°/sec |
| Norm conformity | This product conforms to all applicable European Union legislation. Please refer to the Declaration of Conformity for further information. |
LZR®-FLATSCAN FDA
Fire door adapter for the FLATSCAN
LZR®-FLATSCAN RETROFIT INTERFACE
Retrofit accessory the FLATSCAN
LZR®-FLATSCAN PROTECTIVE COVER
Protective cover for the FLATSCAN

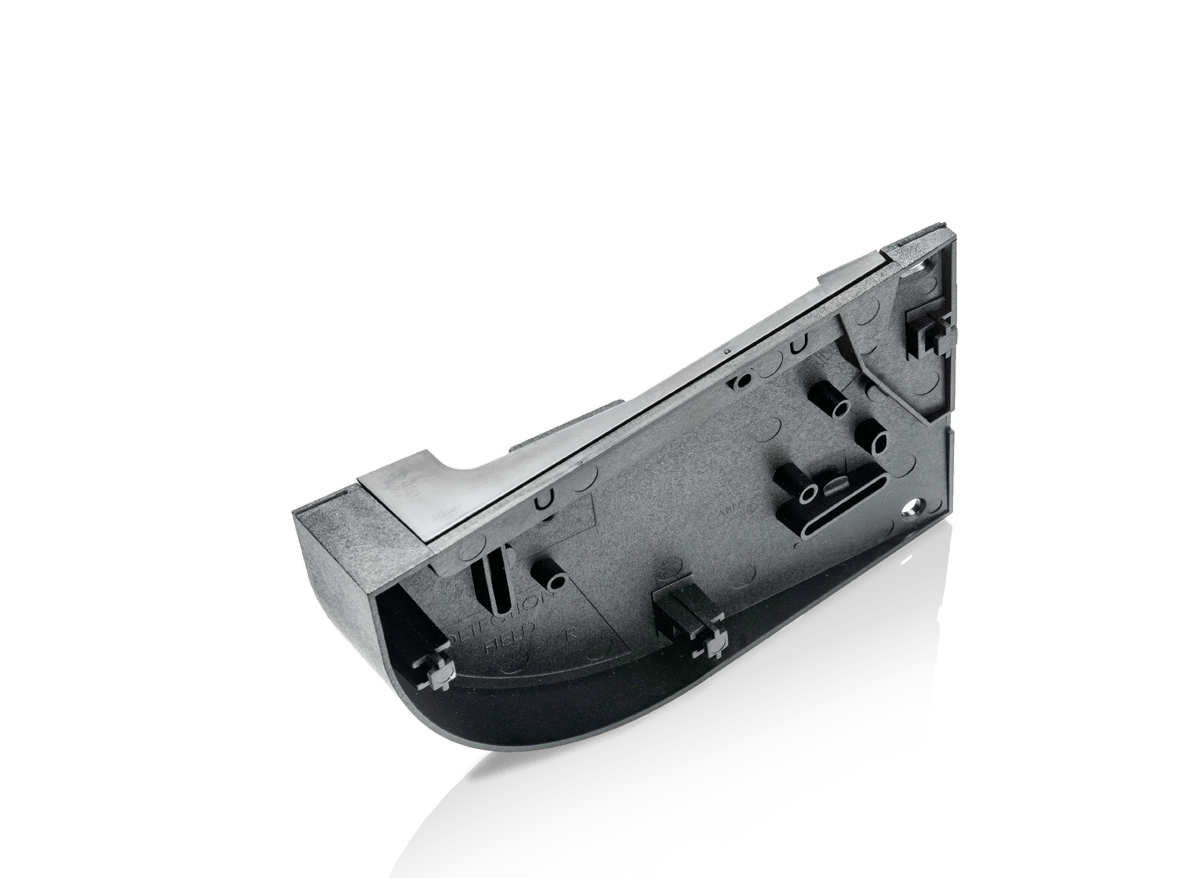

LZR®-FLATSCAN SW TILTED MOUNTING BASE
