The LZR®-P110 is a universal safety solution for sliding, swing and revolving doors designed in conformity with the DIN 18650 and EN 16005 standards and a detection field of maximum 5 m x 5 m.

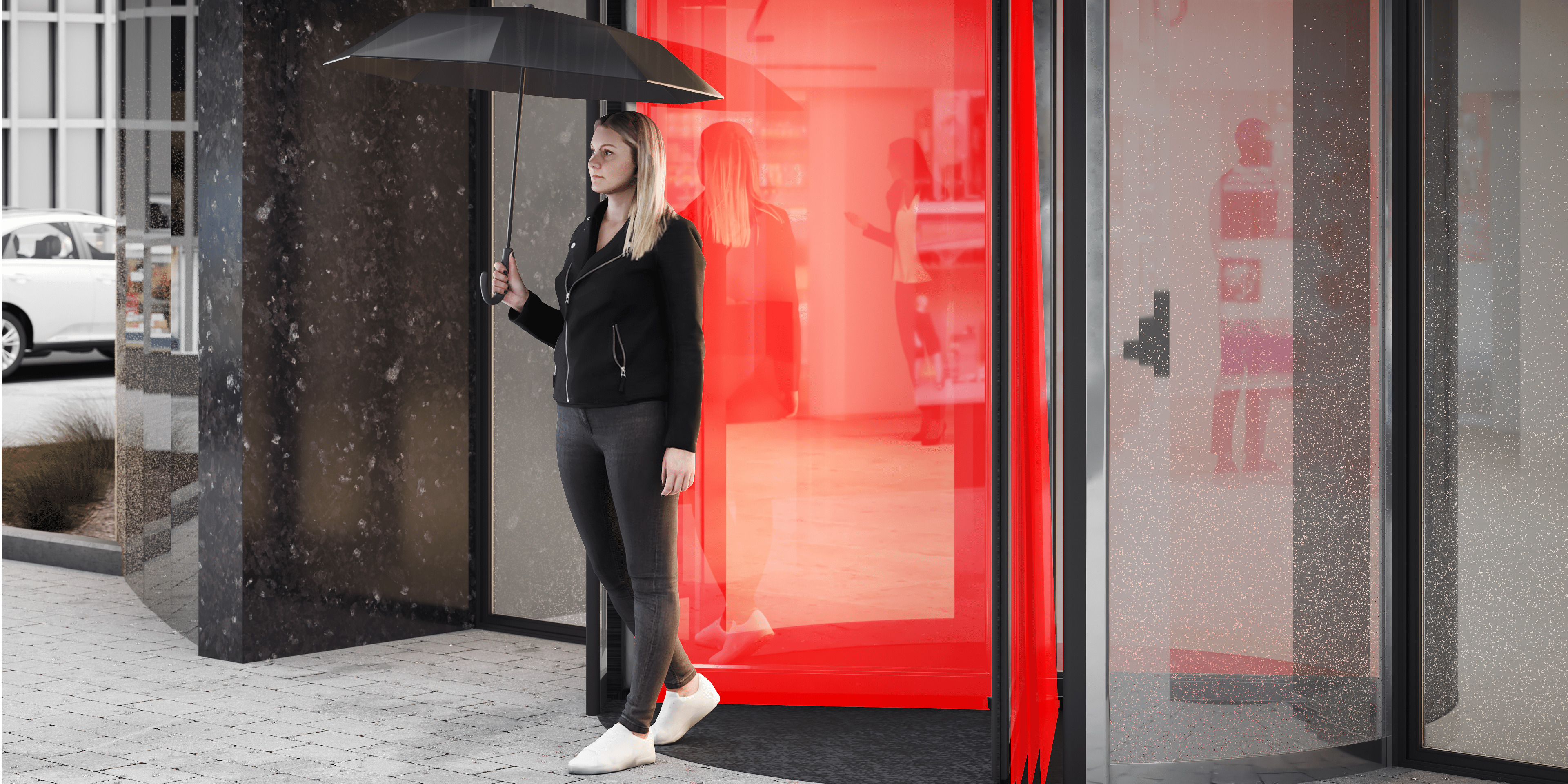

Independent of floor
No reflectivity interferences as a result of time-of-flight technology.
Bi-functional usability
Bi-functional usability thanks to flexible and easy-to-use signal outputs (e.g. slow-mode and stop-mode for revolving doors, virtual push-buttons, and safety sensors for sliding doors)
High resolution
Three-dimensional safety on the door threshold and close to the closing area with 4 high-resolution laser curtains (274 measurements per 66 ms at angles of 0°, 2°, 4°, 6°).
Immunity filters
Optimized for outside applications through rain and snow filters and an internal heating system.
BEA LZR-P110
| Technology | LASER scanner, time-of-flight measurement |
| Detection mode | Presence |
| Max. detection range | 5.0 m × 5.0 m |
| Uncovered zone | 5 - 25 cm (adjustable) |
| Remission factor | > 2 % |
| Angular resolution | 0,3516 ° |
| Min. detected object size (typ.) | 2.1 cm @ 3 m ; 3.5 cm @ 5 m (in proportion to object distance) |
| Testbody | 700 mm × 300 mm × 200 mm (Testbody CA according to EN16005/DIN18650) |
| Emission characteristics | IR Laser: Wavelength 905nm; max. output pulse power 75W (Class 1) Red visible Laser: Wavelength 650nm; max. output CW power 3mW (Class 3R) |
| Supply voltage | 10-35 V DC @ sensor side |
| Power consumption | < 5 W |
| Peak current at power-on | 1.8 A (max. 80 ms @ 35 V) |
| Response time typ | 20 ms; max. 80 ms (+ output activation delay) |
| Output Max. switching voltage Max. switching current | 2 electronic relays (galvanic isolated - polarity free) 35 V DC / 24 V AC 80 mA (resistiv) |
| Input Max. contact voltage Voltage threshold | 2 optocouplers (galvanic isolated - polarity free) 30 V DC (over-voltage protected) Log. H: >8 V DC; Log. L: <3 V DC |
| Dimensions | 125 mm (D) × 93 mm (W) × 70 mm (H) (Montagesockel + 14 mm) |
| Material | PC/ASA |
| Colour | Black or white |
| Rotation angles on bracket | -5 ° to +5 ° (lockable) |
| Tilt angles on bracket | -3 ° to +3 ° |
| Protection degree | IP65 |
| Temperature range | -30°C to +60°C if powered; -10°C to +60°C unpowered |
| Humidity | 0-95% non-condensing |
| Vibrations | < 2 G |
