BDT2FE ARM
Sliding Pull Arm
BDT2R55 ARM
Slim Sliding Pull Arm
BSG150/250 ARM
Sliding Jointed Pull Arm (recess arm)
BSS2FE ARM
Articulated Push Arm
BDS2FE ARM
Sliding Push Arm
BDS2FE ARM
Slim Sliding Push Arm

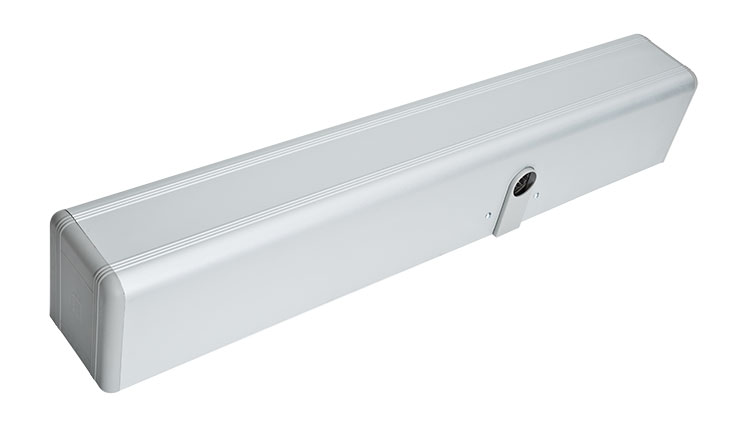

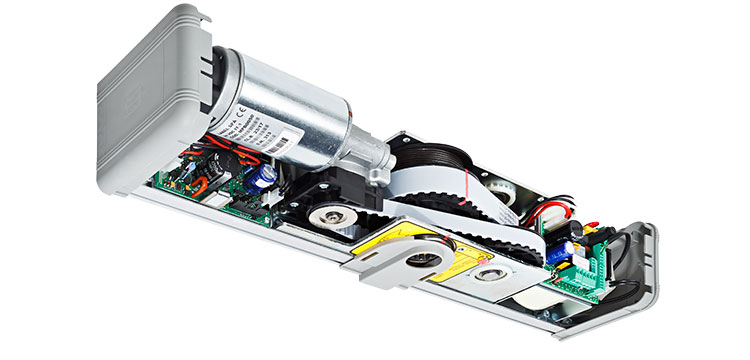

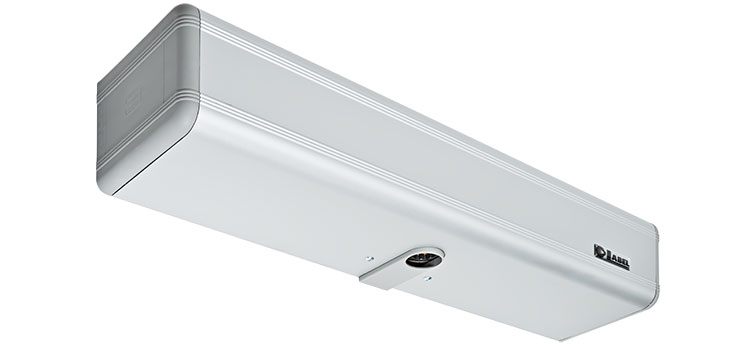

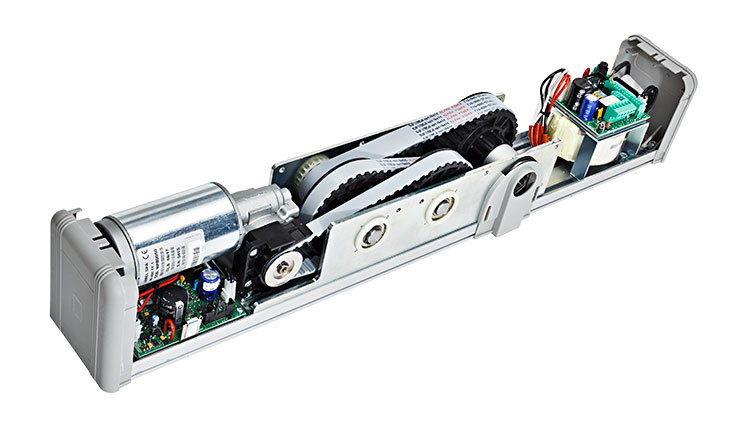

An accomplished and versatile range of operators, the NEPTIS is configurable to suit a variety of applications, for single and double leaf doors, with spring or motorised closure, emergency battery, can be used on doors manufactured with aluminium, wood or metal and is the ideal choice for persons with disabilities, for offices and public buildings, meaning they can be used in all fields of application.
The NEPTIS series provides functions for the disabled, electric strike or electromagnetic management and interlock functionality between two automatic doors.
Automatic swinging doors of the NEPTIS series are equipped with the most advanced hardware and software solutions, ensuring maximum reliability and safety.
The NEPTIS LET and SLT both have fire certification from EXOVA Warringtonfire which guarantees the protection against the spread of fire for at least 120 minutes*
With it’s advanced digital programmer it possible to perform a complete diagnostic of the system, with the ability to access the information area and the history of detected errors.
Management of the safety sensors, control of the moving forces and inversion of movement in the presence of obstacles make the automatic doors of the LABEL NEPTIS series extremely safe.
The LABEL NEPTIS automation system has successfully passed all the lab tests required by the standard EN13849, with particular reference to the testing of electronic safety components, is TÜV certified and fully complies with new European Standard EN16005.
All the programming of the operator is done using a separate digital interface with a large LCD screen. This enables the set-up of the operator to be done at ground level, as opposed to up a step-ladder.
Through the digital programmer, the operator can be adapted to suit a wide variety of installation types including demanding locations such as in hospitals, healthcare facilities, retail stores, airports and hotels.
A range of accessories including neck extensions, a battery back-up, in-swing recess arm, maximise the suitability of this range of operators for even the trickiest of installations..

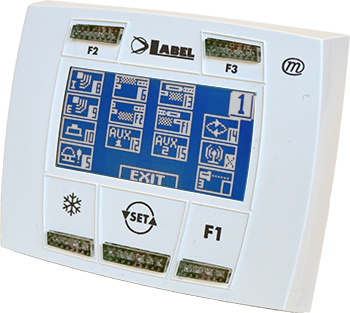

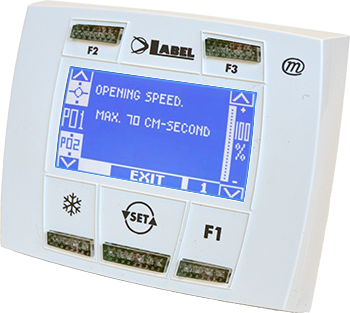

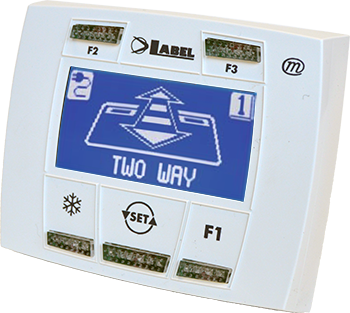

The LABEL D-SEL is one of the most advanced selectors on the market. Not only does it allow you to program the NEPTIS range, but also provides diagnostics with input indication so you can see instantly what is happening. Not only that, the D-SEL provides the ability to control the function of the door for the end user, with password control to prevent unauthorised changes.
Sliding Pull Arm
Slim Sliding Pull Arm
Sliding Jointed Pull Arm (recess arm)
Articulated Push Arm
Sliding Push Arm
Slim Sliding Push Arm
LET | SLT | SMT | SMP | INVERS | |
---|---|---|---|---|---|
Max loading capacity | 120 kg | 250 kg | 300 kg | 250 kg | |
Drive system | Motor Open Spring Close | Motor Open Motor Close | Spring Open Motor Close | ||
Fire rating | 120 mins EXOVA Warringtonfire | - | - | - | |
Built in battery | Available built-in or in separate housing | Available in separate housing | Available built-in or in separate housing | ||
Dimensions (HxDxW) | 550x110x120mm | 730x110x120mm | 550x110x120mm | ||
Dimensions with built-in battery (HxDxW) | 730x110x120mm | N/A | 730x110x120mm | ||
Power supply | 115/230 Vac 50-60Hz | ||||
Power consumption | 95W | ||||
Standby consumption | 15W | ||||
Power output for accessories | 24 Vdc @ 1A | ||||
Electric Lock supply | Clean contact or 24Vdc @ ??mA supply | ||||
Protection rating | IP31 | ||||
Operating temperature | -15° C + 50° C | ||||
Type of use | Intensive use 100% | ||||
Opening speed | 4 - 12secs adjustable | 3 - 8secs adjustable | |||
Closing speed | 5 - 15secs adjustable | 6 - 15secs adjustable | |||
Interlock system | Configuration for two Label automatic doors with interlock system |
*requires fire rated door and equipment to meet requirements
