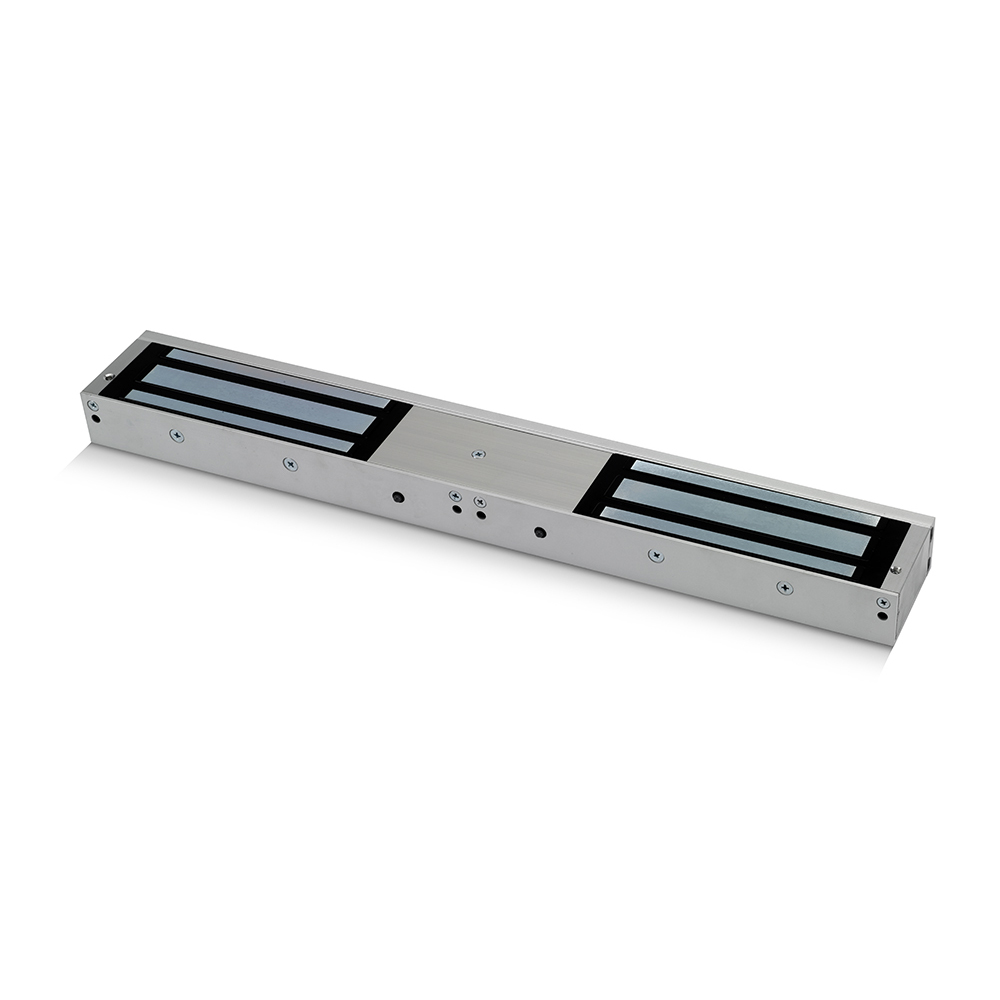

12-24Vdc, 1200lbs, Fire Rated Double Magnet – Monitored with Door Status

• FD30 + FD60 Rated
• Operating voltage 12~24Vdc (Selectable)
• Aluminium housing
• Monitored
• Safety bolts fitted
• Fire tested: BS EN1634:1
• Holding force up to 2 x 1200lbs (544Kg)
• Electro-less nickel plated armature
• Door status: An independent contact that works separately from the magnet to show door status not lock status
• 1 Hour UK fire certificate
• Status LED: Red and Green
• Voltage tolerance: ±10%.
• Current draw: 420mA at 12Vdc, 210mA at 24Vdc (at temperature 20°C).
• Operating temperature: -10~55°C (14 to 131°F).
• Lock’s surface temperature: Current temperature ±20% (when power is on).
• Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc).
• Aluminium housing, nickel plated armature.
• Humidity: 0~95% non-condensing.
• Weight: 9.3kg (approx).
• Dimensions 532 × 67 × 40 mm
