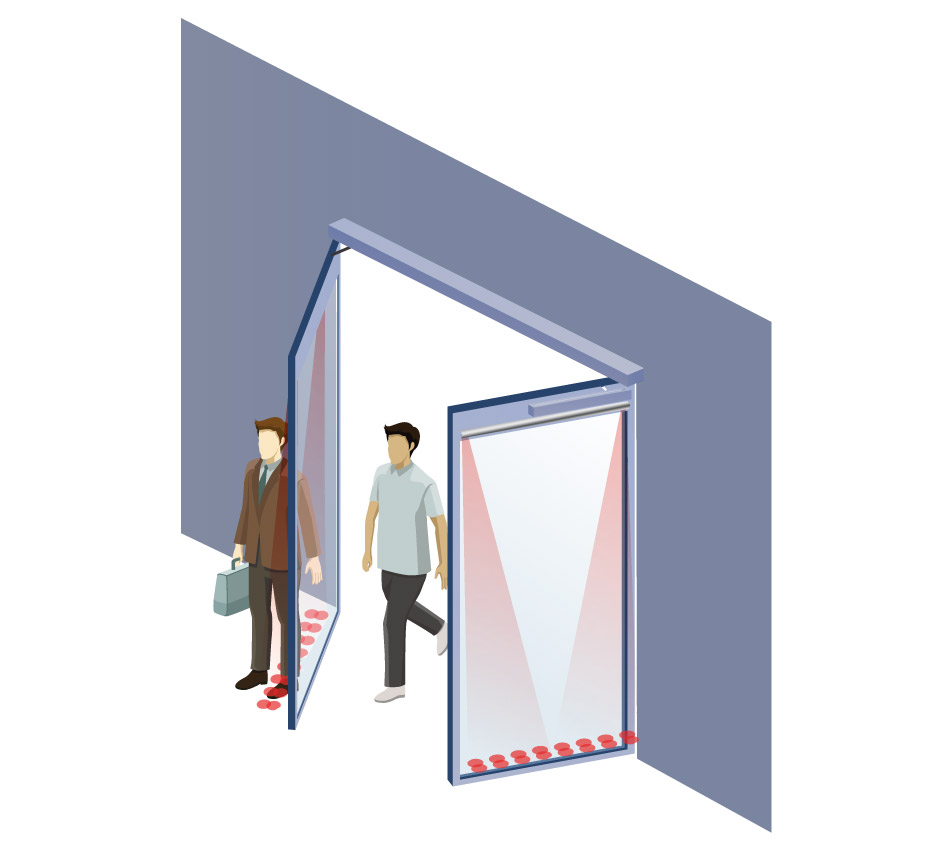

BEA 4SAFE On-Door Safety Sensor

active infrared with background suppression

400 mm (W) x 70 mm (D) (at 2 m mounting height; 4 spots active)

1.3 m to 3.5 m*

64 ms (typ)

infinite

12 V – 24 V AC +/-10% ; 12 V – 30 V DC -5%/+10% (to be operated from SELV compatible power supplies only)

95 mA @ 24 V AC/ 70 mA @ 24 V DC; 170 mA @ 12 V AC/ 130 mA @ 12 V DC (MASTER)
85 mA @ 24 V AC/ 60 mA @ 24 V DC; 180 mA @ 12 V AC/ 113 mA @ 12 V DC (other modules)

2 relays (free of potential contact)
42 V AC/DC
1 A (resistive)
30 W (DC) / 42 VA (AC)

1 optocoupler (free of potential contact)
30 V
high: >10 V DC; low: <1 V DC

4 (up to 6 if 24 V DC)

min. 5% at IR-wavelength of 850 nm

IP53

-25 °C to +55 °C; 0-95% relative humidity, non condensing

20 years

EMC 2004/108/EC; MD 2006/42/EC; ROHS 2 2011/65/EU
DIN 18650-1:2010 ch. 5.7.4; BS 7036-2:1996*; EN 16005:2012 ch. 4.6.8;
EN 12978:2003 + A1:2009; EN 61508:2010; IEC 61496-2:2006; BGR 232;
EN ISO 13849-1:2008 Performance Level «c» CAT. 2
(under the condition that the door control system monitors the sensor at least once per door cycle)
