BEA CONDOR Industrial Sensor

Name: BEA CONDOR Industrial Sensor
Brand: BEA
SKU: CONDOR-V
Availability: InStock

From : BEA

£431.06 ex vat

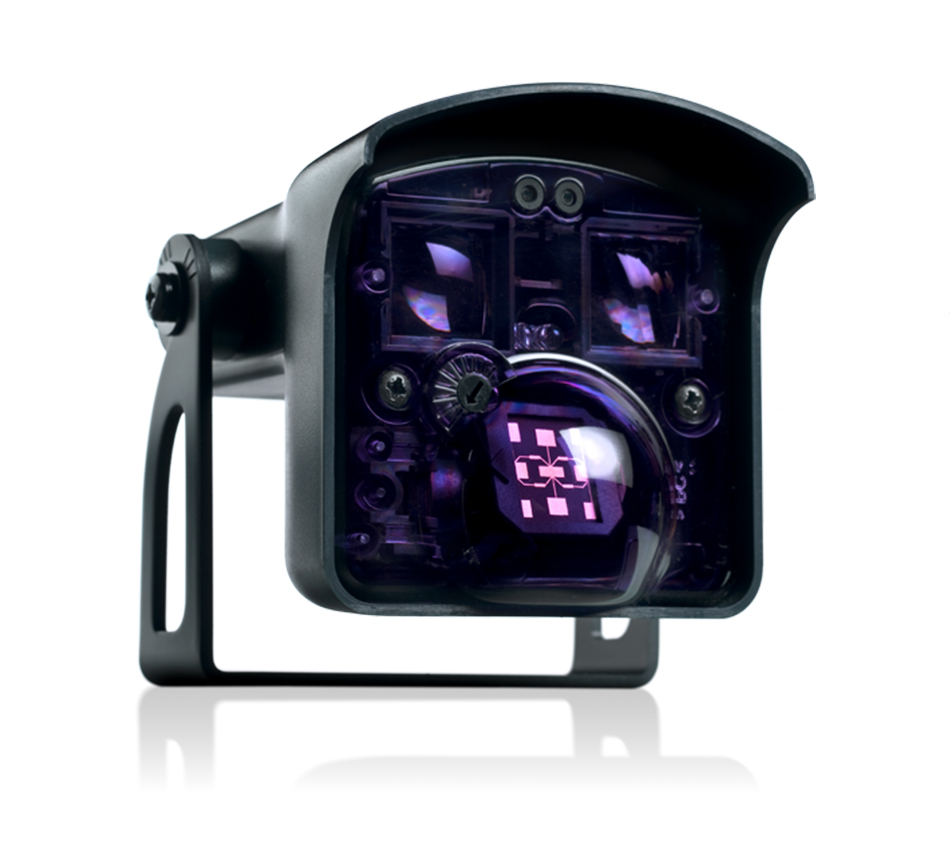

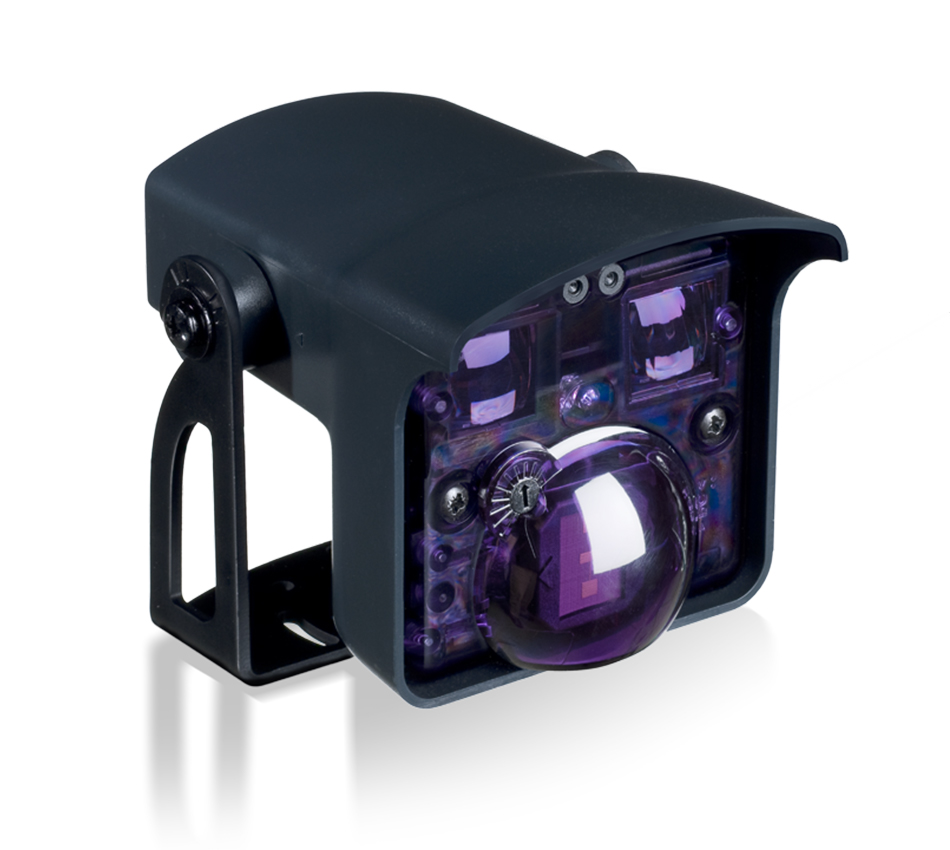

The CONDOR has a microwave motion detector and an active infrared presence sensor built in the same housing. The microwave FALCON-type planar antenna stands for a comfortable activation quality. The signal treatment results in an accurate precision to filter out pedestrians, cross-traffic and possible interferences. The active infrared technology offers a presence area where every vehicle and object standing still close to the door will be detected.

Trade Customer?

Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Part code: CONDOR-V Categories: Activation Sensors, Safety Sensors Tags: BEA Safety Sensor, Infrared, Industrial Use Brand: BEA

Product Type	Activation Sensor, Industrial Sensors, Safety Sensor

Technical

Supply voltage:	12V to 24V AC ±10%; 12V to 24V DC +10% / -3%
Power consumption:	< 3.5 W / VA
Mains frequency:	50 to 60 Hz
Output: Max. contact voltage: Max. contact current: Max. switching power:	2 relays (free of potential change-over contact) 42 V AC/DC 1 A (resistive) 30 W (DC) / 48 VA (AC)
Output holdtime:	0.5 s
Mounting height:	CONDOR: 3.5 m – 6 m; CONDOR XL: 2 m – 3.5 m
Temperature range:	from -30 °C to + 60 °C
Humidity:	0 – 95% non condensing
Degree of protection:	IP65
Dimensions:	127 mm (L) x 102 mm (H) x 96 mm (W)
Materials:	ABS and polycarbonate
Weight:	400 g
Cable lenght:	10 m
Norm conformity:	EN 300 440-2 V1.4.1, EN 301 489-1 V1.9.2, EN 301 489-3 V1.6.1, EN 62311, EN 62479
Technology:	microwave doppler radar	active infrared
Transmitter frequency/wavelength:	24.150 GHz	875 nm
Transmitter power density:	< 5 mW/cm²	< 250 mW/m²
Detection mode:	motion	motion & presence

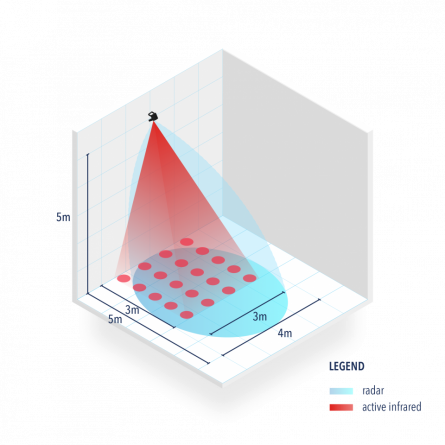

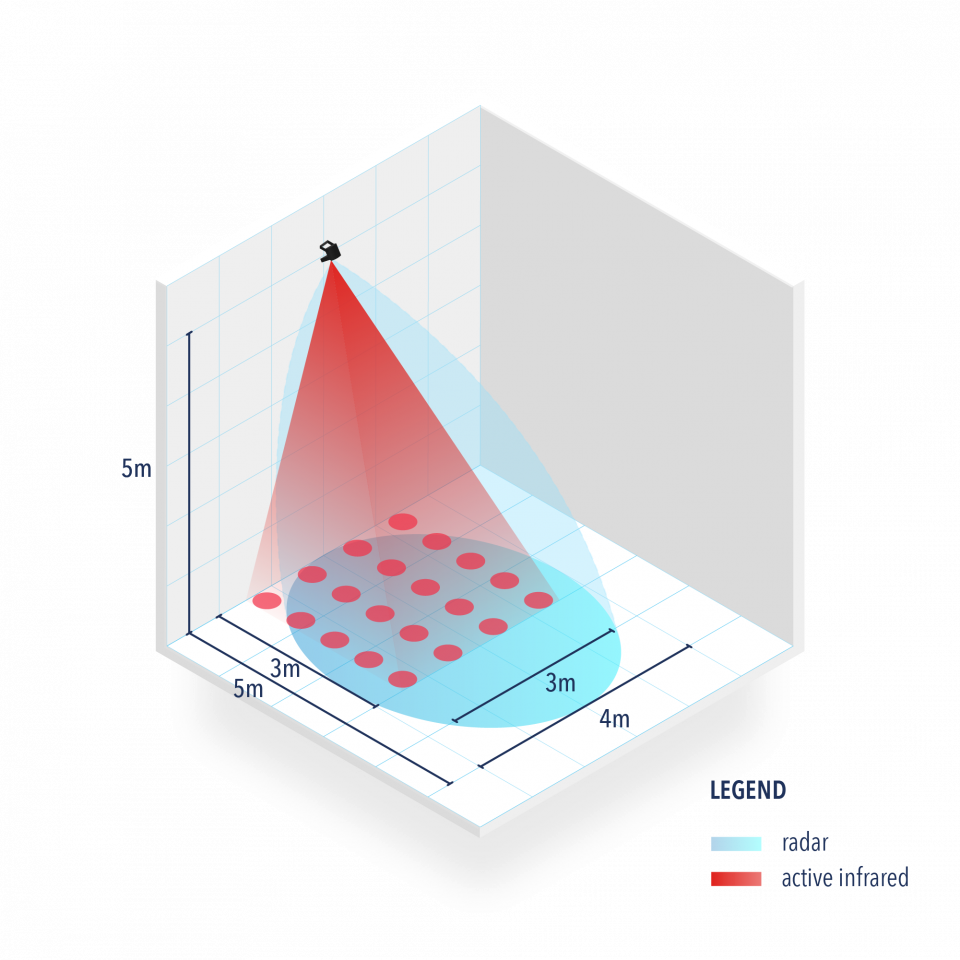

Detection field:	CONDOR: 4 x 5 m CONDOR XL: 4 x 2 m	4 m x 4 m (emitting spots)
Min. detection speed:	5 cm/s	5 cm/s to activate detection
Reaction time:	100 ms	250 ms
Tilt angle:	-8° – 22° (relative to sensor front face)	15° – 45°
