BEA Flatscan GO On-Door Safety Sensor
£550.00 ex vat

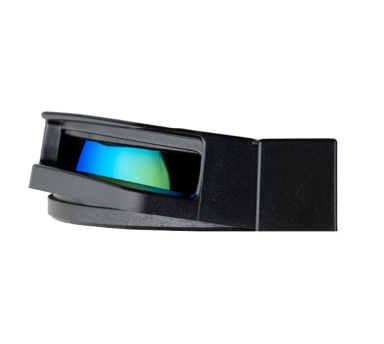

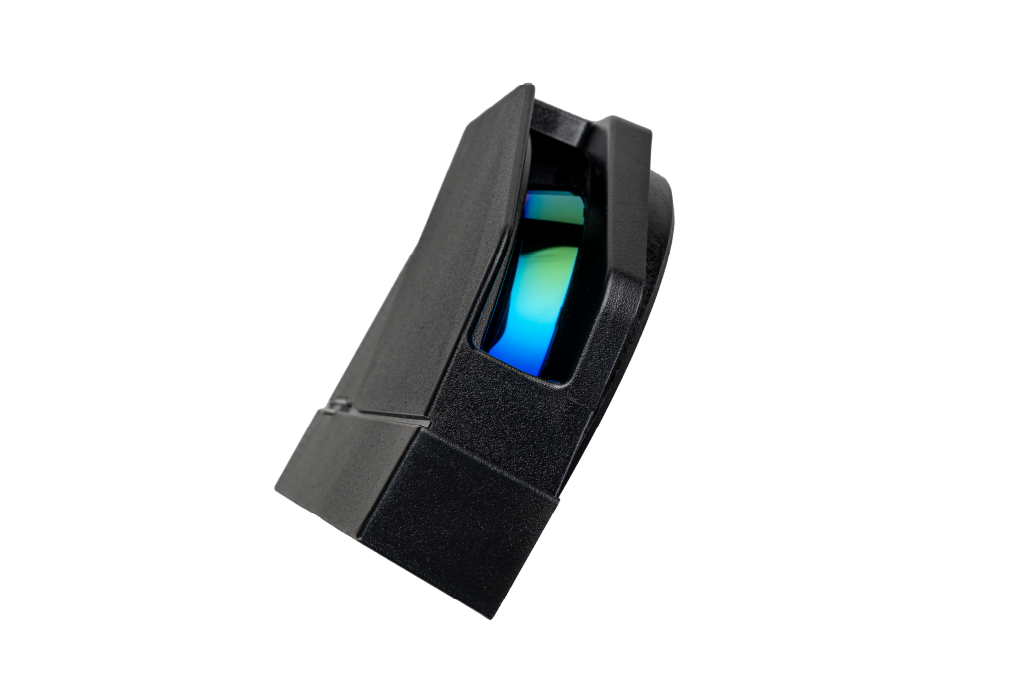

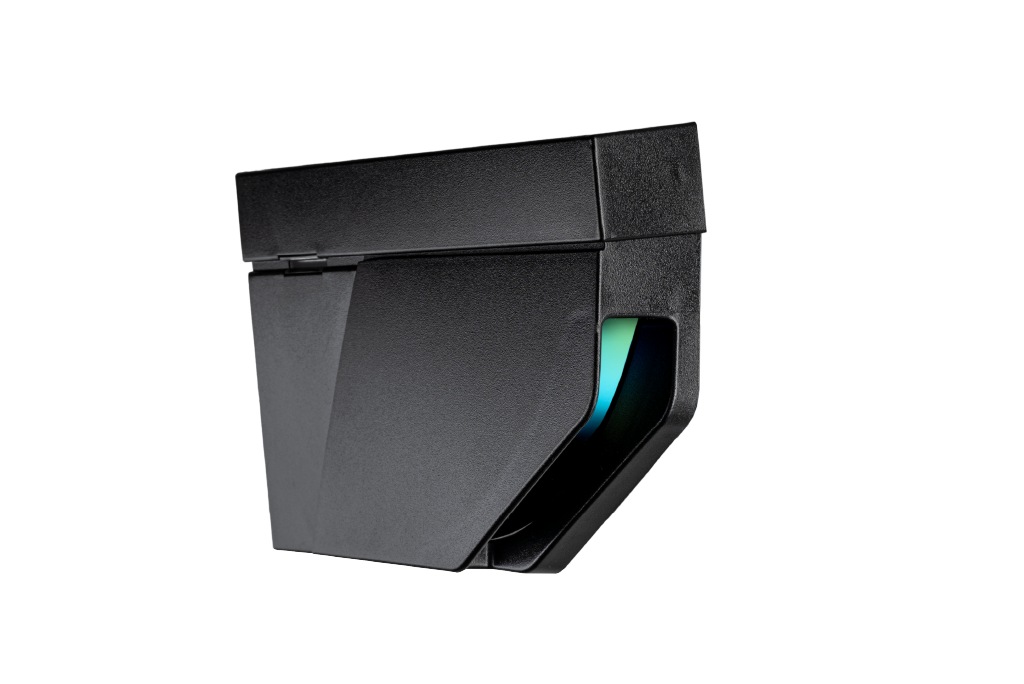

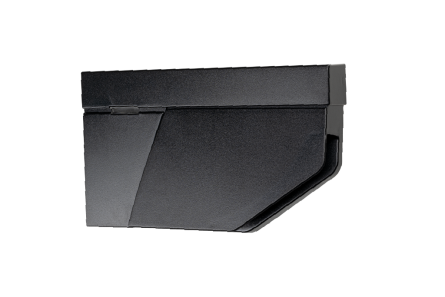

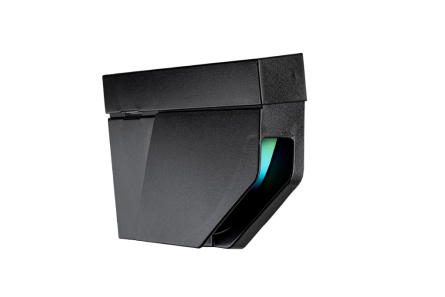

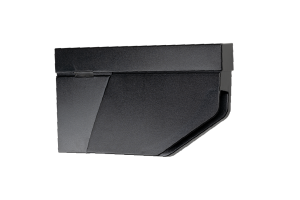

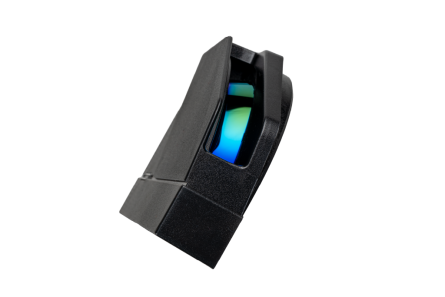

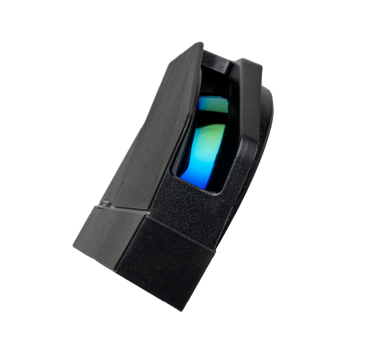

The LZR®-FLATSCAN GO is designed to secure the moving leaves of swing doors. The stability and precision of the LASER technology allows it to be installed in challenging environments, where floor variations could cause unwanted detections with infrared sensors.
The LZR®-FLATSCAN GO is designed to secure the moving leaves of swing doors. The stability and precision of the LASER technology allows it to be installed in challenging environments, where floor variations could cause unwanted detections with infrared sensors.
Compact design
The LZR®-FLATSCAN GO can be used on swing doors, up to 2.5 m high. Thanks to its compact design (8.5 cm × 14.2 cm) it can be stocked and stored easily.
Independent of floor and surroundings
Nothing worse than coming back to an installation because snow has accumulated or the weather conditions changed. Thanks to the LASER technology and its great stability of detection over time, the LZR®-FLATSCAN GO easily adapts to changing weather conditions and different types of floors (slatted floors, absorbent…).

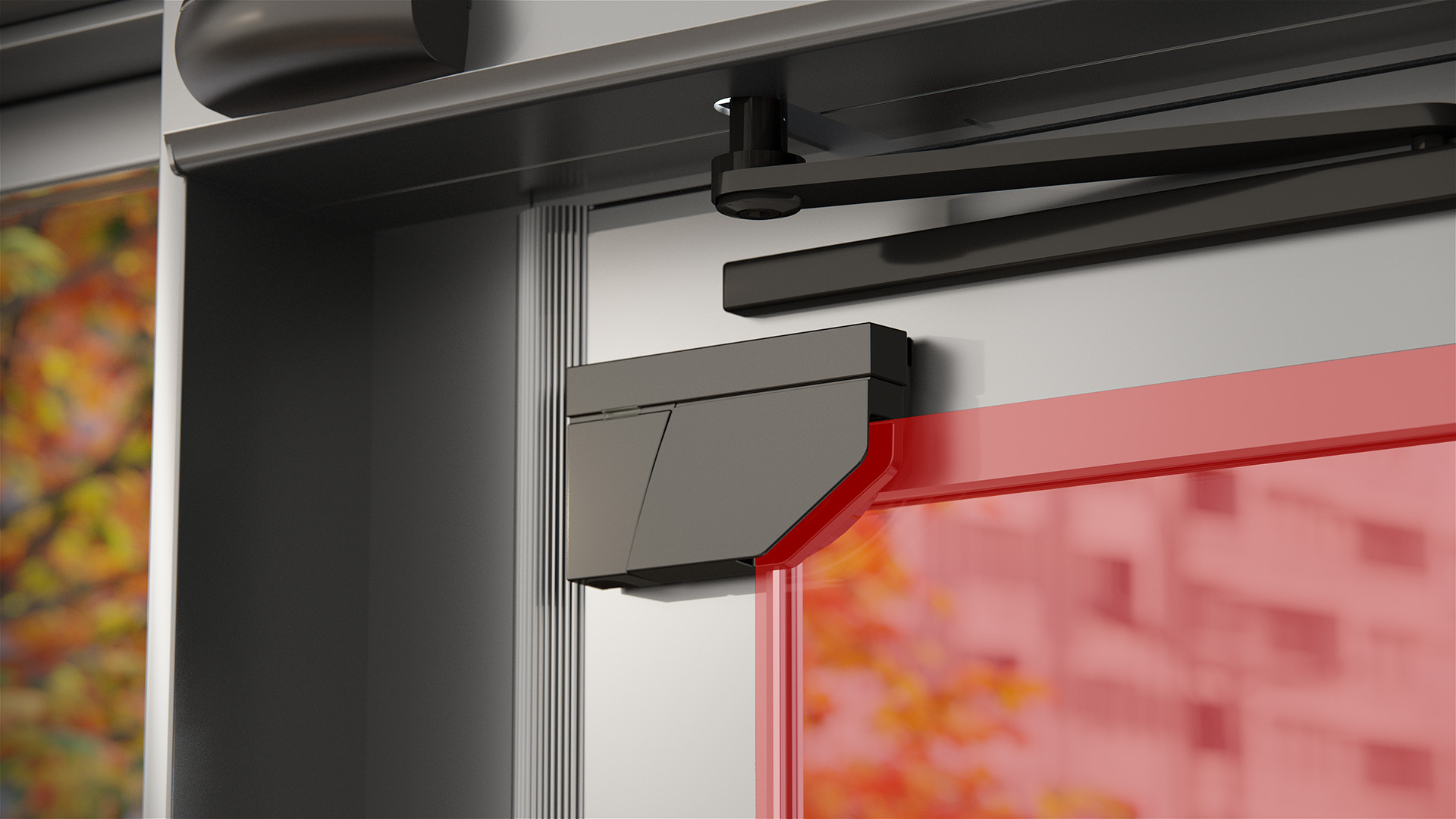

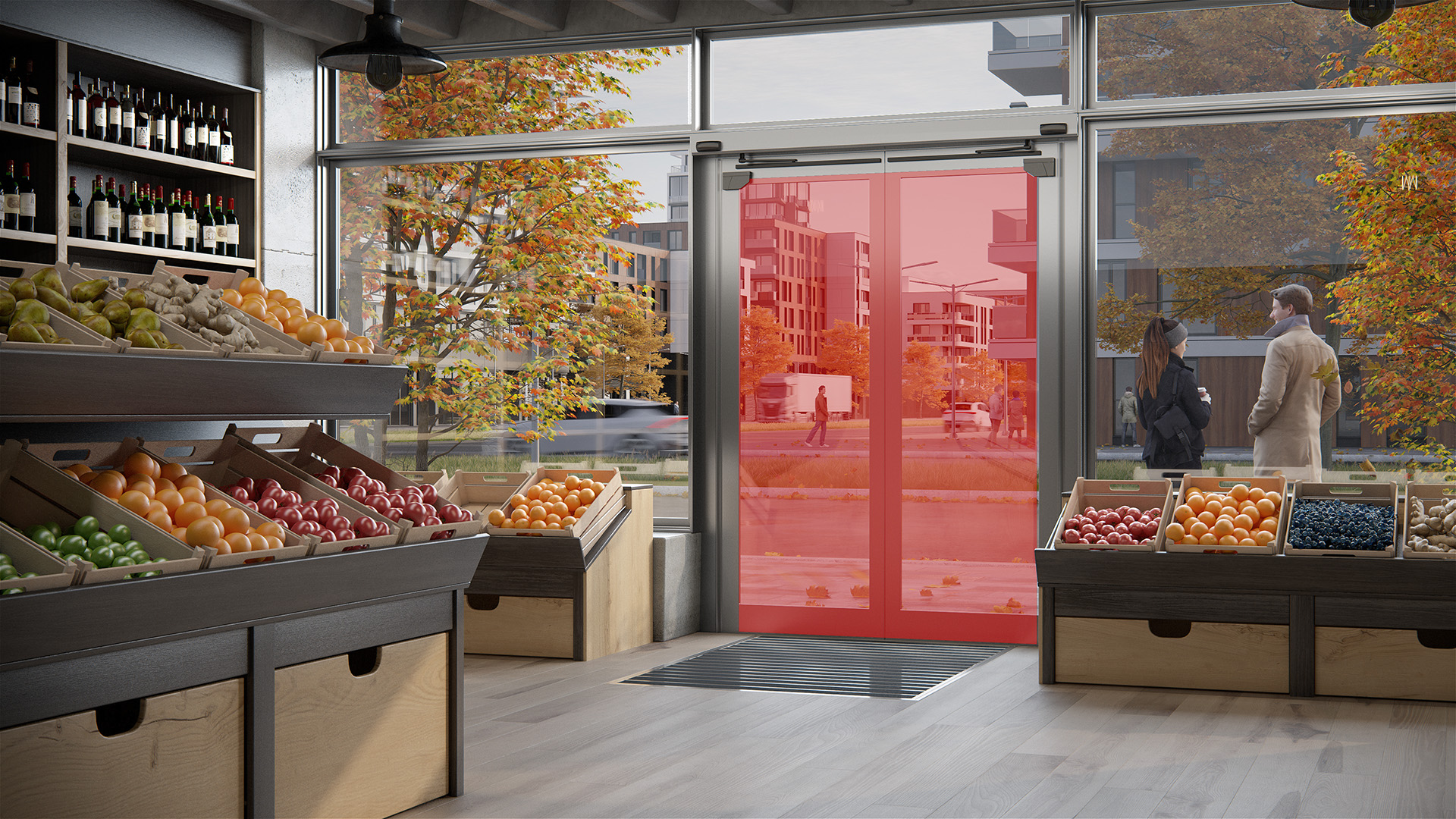

Laser safety field
The leaf is covered by the laser safety field. Thanks to its reduced grey zone of only 10 cm, it offers a covering from top to bottom. Note that extra safety measures are mandatory to protect the hinge area to comply with EN16005.
Fast & intuitive installation
The width of the detection field of the sensor is defined by a simple hand movement, which leads to installation time savings. Fast and easy handling to get the safety on your door.
| Technology | LASER scanner, time-of-flight measurement |
| Max. Detection range | max. 2,50 m (height) and 2,50 m (width) with reflectivity of 2% |
| Field of view | 90° |
| Angular resolution | 1.3° |
| Typ. min. object size (door wing protection) | ≤ 10 cm |
| Testbody | 700 mm × 300 mm × 200 mm (testbody CA according to EN 16005 & DIN 18650) |
| Optical charateristics (IEC/EN 0825-1:2014) | IR LASER: wavelength 905 nm; output power < 0.1 mW; Class 1 |
| Supply voltage | 12 - 24 V DC ± 15 % |
| Power consumption | ≤ 2 W |
| Response time | max. 50 ms |
| Output Max. switching voltage Max. switching current | 2 electronic relays (galvanic isolation - polarity free) 30V AC / 42V DC 100 mA |
| LED-signals | 1 bi-coloured LED: detection/output status |
| Dimensions | 146 mm (L) × 85 mm (H) × 32 mm (D) (mounting base + 7 mm) |
| Material - Colour | PC/ASA - Black |
| Tilt angles | +2° to +10° (without mounting bracket) |
| Protection degree | IP54 (EN 60529) |
| Temperature range | -30°C to +60°C if powered |
| Humidity | 0-95 % non-condensing |
| Vibrations | < 2 G |
| Norm conformity | EN 12978; EN ISO 13849-1 Pl “d”/ CAT2; EN 16005 (testbody CA); EN 61508 SIL2 |
LZR®-FLATSCAN RETROFIT INTERFACE
Retrofit accessory the FLATSCAN

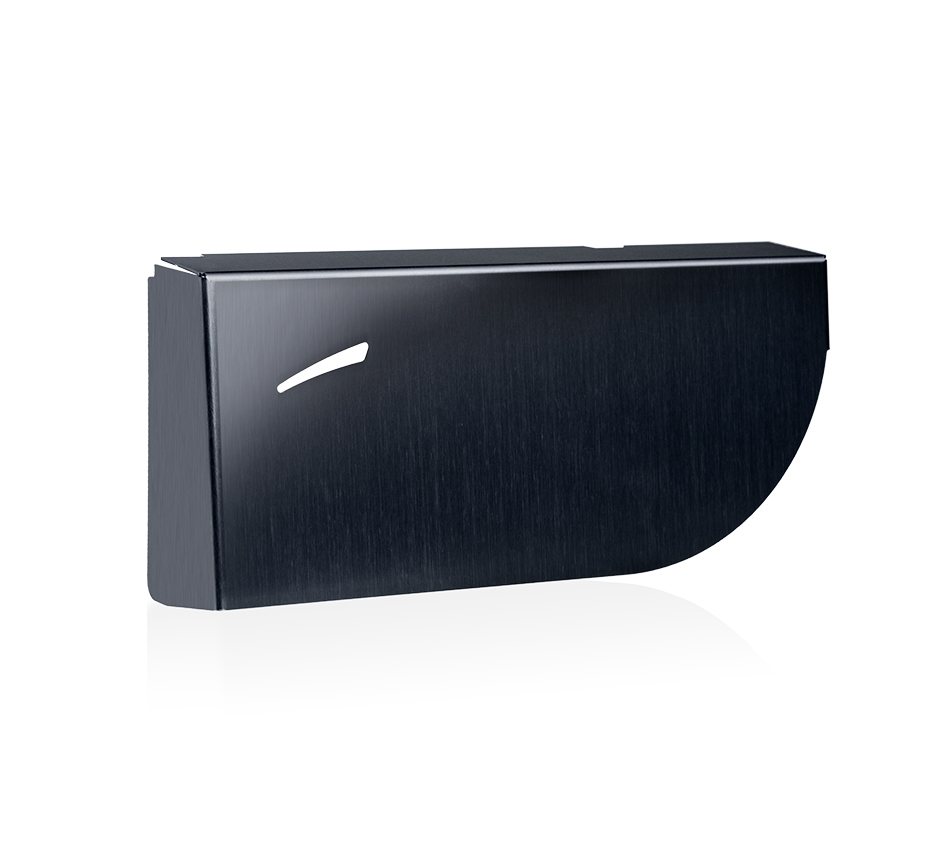

LZR®-FLATSCAN PROTECTIVE COVER
Protective cover for the FLATSCAN

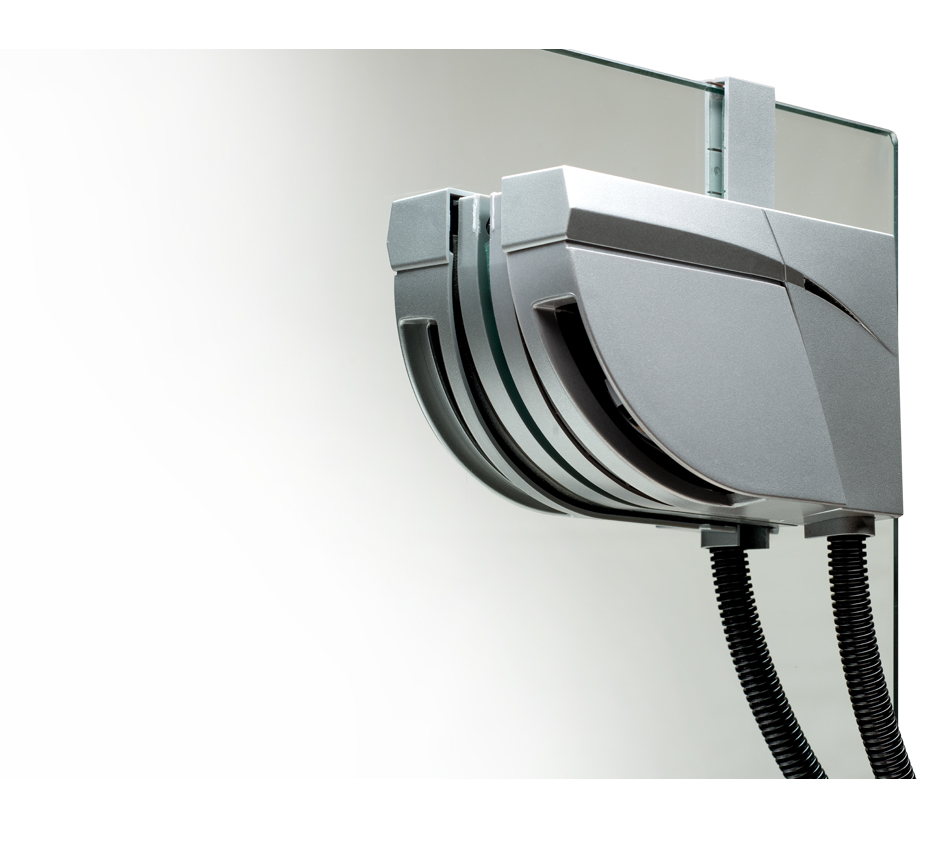

GDA
Glass door accessory
BEA REMOTE CONTROL
Universal remote control for the adjustments of BEA sensors.
| Product Type | Safety Sensor, Swing Door Sensors |
|---|
Technical
| Technology | LASER scanner, time-of-flight measurement |
| Max. Detection range | max. 2,50 m (height) and 2,50 m (width) with reflectivity of 2% |
| Field of view | 90° |
| Angular resolution | 1.3° |
| Typ. min. object size (door wing protection) | ≤ 10 cm |
| Testbody | 700 mm × 300 mm × 200 mm (testbody CA according to EN 16005 & DIN 18650) |
| Optical charateristics (IEC/EN 0825-1:2014) | IR LASER: wavelength 905 nm; output power < 0.1 mW; Class 1 |
| Supply voltage | 12 - 24 V DC ± 15 % |
| Power consumption | ≤ 2 W |
| Response time | max. 50 ms |
| Output Max. switching voltage Max. switching current | 2 electronic relays (galvanic isolation - polarity free) 30V AC / 42V DC 100 mA |
| LED-signals | 1 bi-coloured LED: detection/output status |
| Dimensions | 146 mm (L) × 85 mm (H) × 32 mm (D) (mounting base + 7 mm) |
| Material - Colour | PC/ASA - Black |
| Tilt angles | +2° to +10° (without mounting bracket) |
| Protection degree | IP54 (EN 60529) |
| Temperature range | -30°C to +60°C if powered |
| Humidity | 0-95 % non-condensing |
| Vibrations | < 2 G |
| Norm conformity | EN 12978; EN ISO 13849-1 Pl “d”/ CAT2; EN 16005 (testbody CA); EN 61508 SIL2 |
