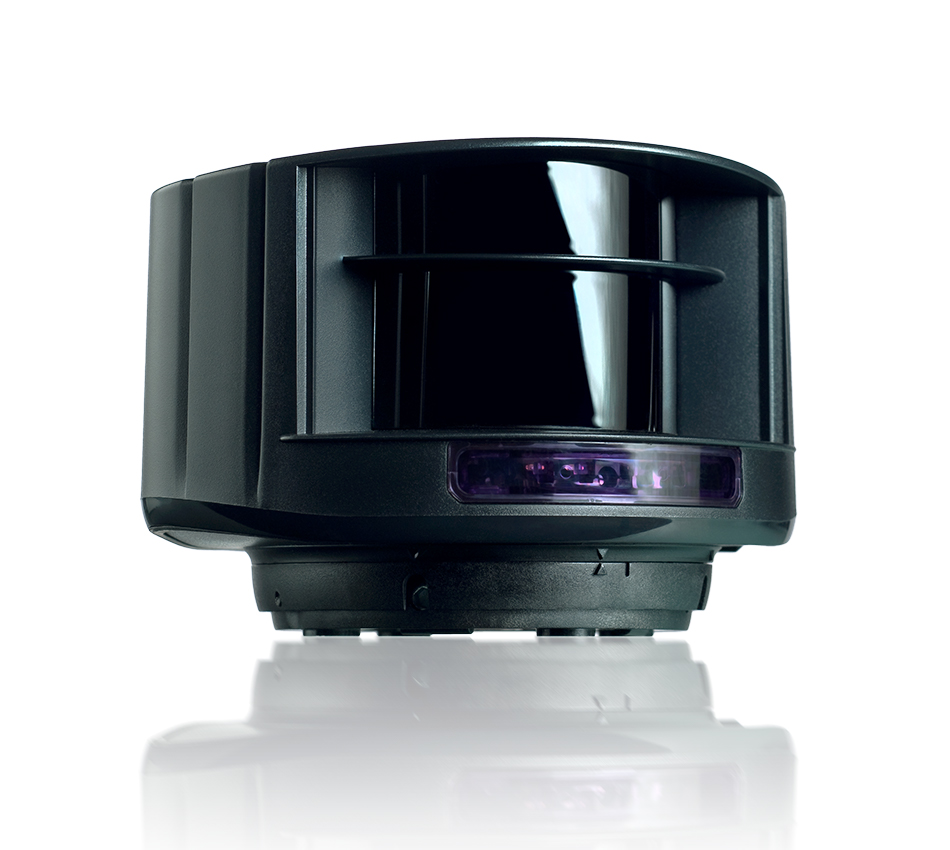

BEA LZR-H100 Laser Scanner for Rising Barriers & Gates
£833.39 ex vat
The LZR-H100 offers a real alternative to induction loops: time gain during installation, detection of all types of vehicles and greater adaptability. This laser sensor for rising barriers is used to open, secure and/or detect a presence. It offers great flexibility in defining the width and depth of the detection zones (max detection field of 9.9 m x 9.9 m).
Double function
Opening, maintenance of presence and/or safety.
Easy installation
Installation of the product without any impact on the surrounding ground, unrestricted and easy definition of the detection fields independently of one another (walking teach-in).
Trajectory detection
It is possible to detect the vehicle’s trajectory as it is approaching or moving away.
Pedestrian filter
Screens pedestrians in the opening area.
| Product Type | Activation Sensor, Safety Sensor |
|---|
Technical
| Technology: | laser scanner, time-of-flight measurement (4 laser curtains) | |
|---|---|---|
| Detection mode: | motion and presence | |

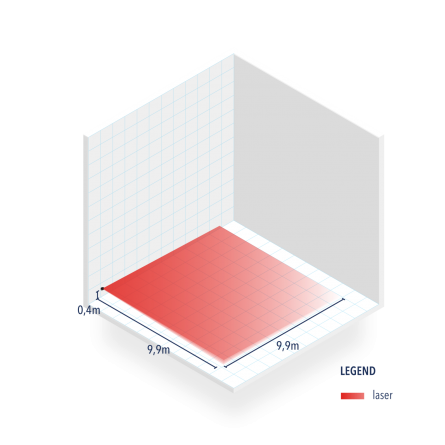

| Max. detection range: | 9.9 m x 9.9 m | |
| Remission factor: | > 2 % | |
| Angular resolution: | 0,3516 ° | |
| Emission characteristics | IR laser: wavelength 905 nm; max. output pulse power 75 W (CLASS 1) Visible laser: wavelength 650 nm; max. output CW power 3 mW (CLASS 3R) | |
| Supply voltage: | 10-35 V DC @ sensor side | |
| Power consumption: | < 5 W | |
| Peak current at power-on: | 1.8 A (max. 80 ms @ 35 V) | |
| Cable length: | 5 m (standard), max.: 10 m | |
| Response time Motion detection: Presence detection: | typ. 200 ms (adjustable) typ. 20 ms; max. 80 ms | |
| Output: Max. switching voltage: Max. switching current: Switching time: Output resistance: Voltage drop on output: Leakage current: | 2 electronic relays (galvanic isolated – polarity free) 35 V DC / 24 V AC 80 mA (resistive) tON=5 ms; tOFF=5 ms typ 30 Ω < 0.7 V @ 20 mA < 10 μA | |
| Input: Max. contact voltage: Voltage threshold: | 1 optocoupler (galvanic isolated – polarity free) 30 V DC (over-voltage protected) Log. H: >8 V DC; Log. L: <3 V DC | |
| LED-signal: | 1 blue LED: power-on status 1 orange LED: error status 2 bi-coloured LEDs: detection/output status (green: no detection; red: detection) | |
| Dimensions: | 125 mm (D) x 93 mm (W) x 70 mm (H) (with mounting bracket + 14 mm) | |
| Material: | PC/ASA | |
| Colour: | black | |
| Mounting angles on bracket: | -45 °, 0 °, 45 ° | |
| Rotation angles on bracket: | -5 ° to +5 ° (lockable) | |
| Tilt angles on bracket: | -3 ° to +3 ° | |
| Protection degree: | IP65 | |
| Temperature range: | -30 °C to +60 °C if powered; -10 °C to +60 °C unpowered | |
| Humidity: | 0-95 % non-condensing | |
| Vibrations: | < 2 G | |
| Pollution on front screens: | max. 30 %; homogenous | |
| Norm conformity: | EN 61000-6-2; EN 61000-6-3; EN 60825-1; EN 60950-1; EN 50581 |
