BEA LZR-I100/I110 Laser Scanner for Industrial Doors
£798.90 – £957.53 ex vat

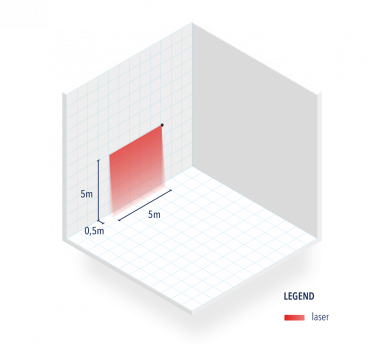

The LZR®-I100 / I110 works according to the principle of time of flight. This high-precision technology and the dynamic orientation of the LASER beams on 4 planes offer optimal safety in the door threshold and its proximity. The sensor is adapted to industrial environments and has a max. detection range of 5 m x 5 m.
Virtual Push Buttons
The possibility to create 2 virtual push buttons to open the door.
Two Seperate Detection Areas
Safety at the opening and the closing of the door thanks to 2 separate detection areas.
Optimized for industrial environments
IP65, 10 m cable, filters door leaf deformation by wind force, filters door vibrations and environmental interferences.
Alternative
Replaces the current solutions such as contact edges, light beams and lightgrids.
| Product Type | Activation Sensor, Industrial Sensors, Safety Sensor |
|---|
Technical
| Technology | LASER scanner, time-of-flight measurement | |
|---|---|---|
| Detection mode | Presence ( EN 12453 Type E ) | |
| Max. detection range | 5 m × 5 m (I110) 10 m × 10 m (I100) | |
| Remission factor | > 2 % | |
| Angular resolution | 0,3516° | |
| Typ. min. object size | 2,1 cm @ 3 m / 3,5 cm @ 5 m / 7 cm @ 10 m (in proportion to object distance) | |
| Testbody | 700 mm × 300 mm × 200 mm (testbody A according to EN 12445) | |
| Emission characteristics | IR LASER: Wavelength 905 nm; max. output pulse power 75 W; Class 1 Red visible LASER: Wavelength 650 nm; max. output CW power 3 mW; Class 3R | |
| Supply voltage | 10-35V DC @ sensor terminal | |
| Power consumption | < 5 W | |
| Response time | Typ. 20 ms; max. 80 ms | |
| Output Max. switching voltage Max. switching current | 2 electronic relays ( galvanic isolation – polarity free ) 35V DC / 24V AC 80 mA (resistive) | |
| LED-signals | 1 blue LED: power-on status 1 orange LED: error status 2 bi-coloured LED: detection/output status | |
| Dimensions | 125 mm (L) × 93 mm (D) × 70 mm (H) ( mounting bracket + 14 mm ) | |
| Material | PC/ASA | |
| Colour | Black / White | |
| Rotation angles on bracket | -5° to +5° ( lockable ) | |
| Tilt angles on bracket | -3° to +3° | |
| Protection degree | IP65 | |
| Temperature range | -30 °C to +60 °C if powered | |
| Humidity | 0-95 % non-condensing | |
| Vibrations | < 2 G | |
| Norm conformity | EN 12453: 2000 chapter 5.1.1.6, chapter 5.5.1 Safety device E ; EN 12978: 2009 ; EN ISO 13849-1: 2008 Pl “d”/ CAT2 ; EN 60529: 2001 ; IEC 60825-1: 2007 ; EN 60950-1: 2005 ; EN 61000-6-2: 2005 ; EN 61000-6-3: 2006 ; IEC 61496-1: 2009 ; EN 61496-3: 2008 ESPE Type 2 ; EN 62061: 2005 SIL 2 ; DIN 18650-1: 2010 Chapter 5.7.4 |
