BEA LZR-P110 Laser Scanner for Pedestrian Doors

BEA LZR-P110 Laser Scanner for Pedestrian Doors - Image 2

BEA LZR-P110 Laser Scanner for Pedestrian Doors - Image 3

BEA LZR-P110 Laser Scanner for Pedestrian Doors

Name: BEA LZR-P110 Laser Scanner for Pedestrian Doors
Brand: BEA
SKU: LZR-P110
Availability: InStock

From : BEA

£948.34 ex vat

The LZR®-P110 is a universal safety solution for sliding, swing and revolving doors designed in conformity with the DIN 18650 and EN 16005 standards and a detection field of maximum 5 m x 5 m.

Trade Customer?

Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Part code: LZR-P110 Category: Safety Sensors Tags: BEA Safety Sensor, Laser Technology, For Swing Doors, For Sliding Doors Brand: BEA

Features

High resolution

Three-dimensional safety on the door threshold and close to the closing area with 4 high-resolution laser curtains (274 measurements per 66 ms at angles of 0°, 2°, 4°, 6°).

Immunity filters

Optimized for outside applications through rain and snow filters
and an internal heating system.

Independent of floor

No reflectivity interferences as a result of time-of-flight technology.

Bi-functional usability

Bi-functional usability thanks to flexible and easy-to-use signal outputs (e.g. slow-mode and stop-mode for revolving doors, virtual push-buttons, and safety sensors for sliding doors)

Product Type	Safety Sensor, Sliding Door Sensors, Swing Door Sensors

Technical

Technology	Laser scanner, time-of-flight measurement
Detection mode	Presence

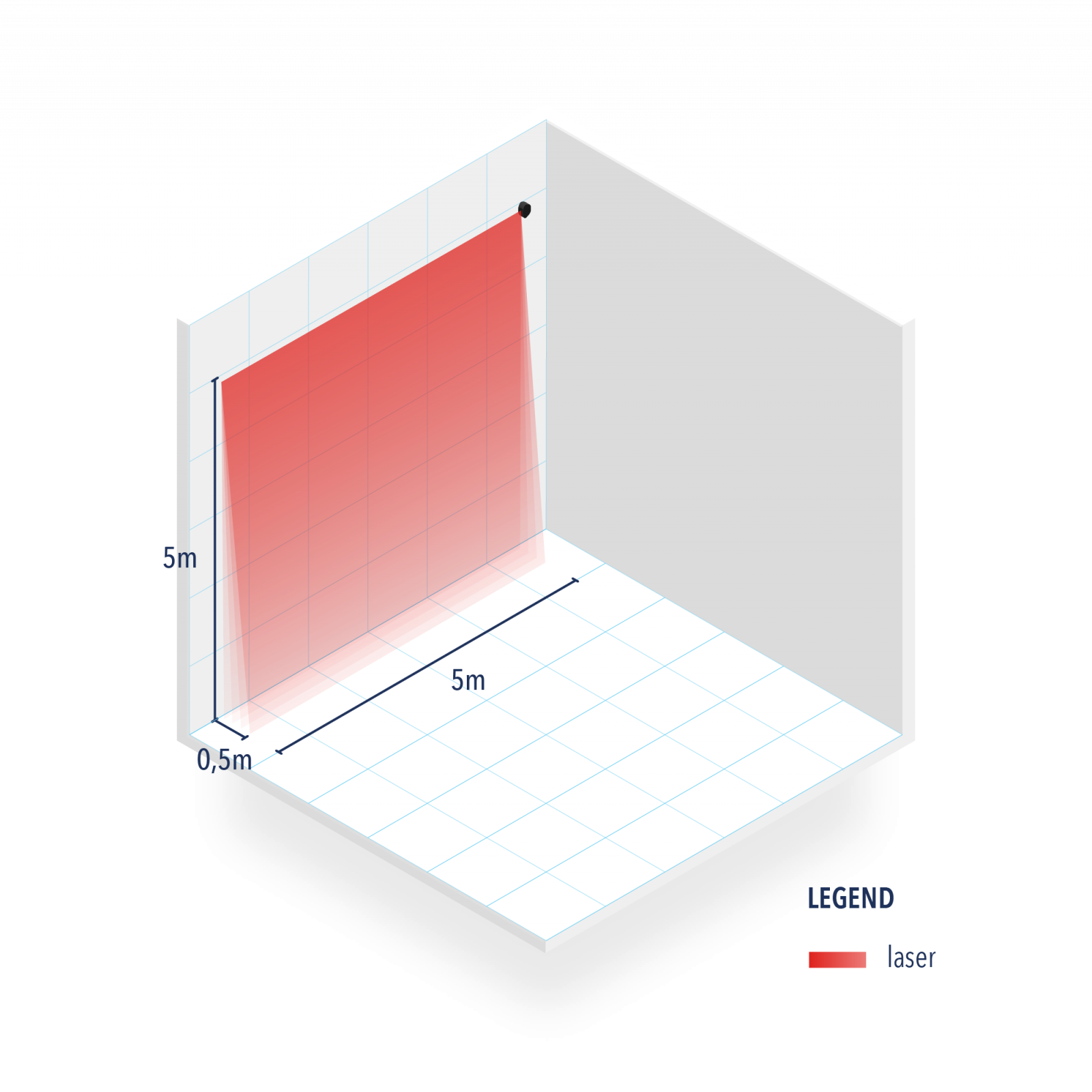

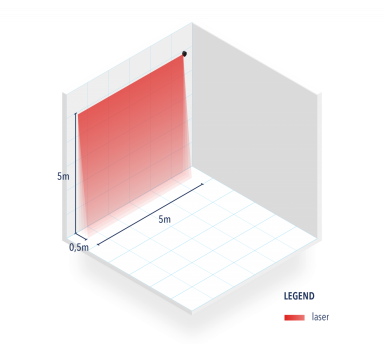

Max. detection range	5.0 m × 5.0 m
Uncovered zone	5 – 25 cm (adjustable)
Remission factor	> 2 %
Angular resolution	0,3516 °
Min. detected object size (typ.)	2.1 cm @ 3 m ; 3.5 cm @ 5 m (in proportion to object distance)
Testbody	700 mm × 300 mm × 200 mm (Testbody CA according to EN16005/DIN18650)
Emission characteristics	IR Laser: Wavelength 905nm; max. output pulse power 75W (Class 1) Red visible Laser: Wavelength 650nm; max. output CW power 3mW (Class 3R)
Supply voltage	10-35 V DC @ sensor side
Power consumption	< 5 W
Peak current at power-on	1.8 A (max. 80 ms @ 35 V)
Response time typ	20 ms; max. 80 ms (+ output activation delay)
Output Max. switching voltage Max. switching current	2 electronic relays (galvanic isolated – polarity free) 35 V DC / 24 V AC 80 mA (resistiv)
Input Max. contact voltage Voltage threshold	2 optocouplers (galvanic isolated – polarity free) 30 V DC (over-voltage protected) Log. H: >8 V DC; Log. L: <3 V DC
Dimensions	125 mm (D) × 93 mm (W) × 70 mm (H) (Montagesockel + 14 mm)
Material	PC/ASA
Colour	Black or white
Rotation angles on bracket	-5 ° to +5 ° (lockable)
Tilt angles on bracket	-3 ° to +3 °
Protection degree	IP65
Temperature range	-30°C to +60°C if powered; -10°C to +60°C unpowered
Humidity	0-95% non-condensing
Vibrations	< 2 G
Expected lifetime	20 years
Norm conformity	EN 12978:2009; EN ISO 13849-1:2008 CAT2, Pl “d”; EN 60529:2001; IEC 60825-1:2007; EN 60950-1:2005; EN 61000-6-2:2005; EN 61000-6-3:2006; IEC 61496-1:2009; EN 61496-3:2008 ESPE Type 2; EN 62061:2005 SIL 2; EN 16005:2012 Chapter 4.6.8; DIN 18650-1:2010 Chapter 5.7.4; BS 7036-1:1996 Chapter 8.1
