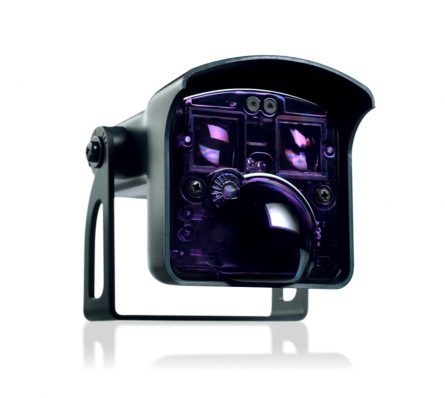

BEA MILAN Industrial Door Sensor
£293.12 ex vat
The MILAN is an active infrared sensor working on the principle of the ground reflectivity analysis. Its mission is to increase the protection of the door by avoiding every collision with vehicles standing close to the door area. Moreover, the MILAN adjustment allows to define small and accurate detection areas in front of the door: 40 active infrared spotlights covering 3 m × 3 m* in front of the door.
Reliable protection
Increased protection of vehicles and pedestrians and improvement of the door protection and reduction of collision risks.
Flexibility
Possibility to adjust the detection area and the minimal size of the target and 2 relay outputs enabling to run motion and presence detection separately.
Immunity
Immunity against door vibrations and interferences.
Designed for industiral environments
IP65, rugged housing and installation till 6 m high depending on size and nature of the target.
| Product Type | Industrial Sensors, Safety Sensor |
|---|
Technical
| Supply voltage: | 12V to 24V AC ±10%; 12V to 24V DC +10% / -3% | |
|---|---|---|
| Power consumption: | < 3.5 W / VA | |
| Mains frequency: | 50 to 60 Hz | |
| Output: Max. contact voltage: Max. contact current: Max. switching power: |
2 relays (free of potential change-over contact) 42 V AC/DC 1 A (resistive) 30 W (DC) / 42 VA (AC) |
|
| Output holdtime: | 0.5 s | |
| Mounting height: | 2.5 m – 6 m* | |
| Temperature range: | from -30 °C to + 60 °C | |
| Humidity: | 0 – 95% non condensing | |
| Degree of protection: | IP65 | |
| Dimensions: | 127 mm (L) x 102 mm (H) x 96 mm (W) | |
| Materials: | ABS and polycarbonate | |
| Weight: | 400 g | |
| Cable lenght: | 10 m | |
| Norm conformity: | EN 61000-6-2; EN 61000-6-3; EN 50581 | |
| Technology: | active infrared | |
| Transmitter frequency/wavelength: | 875 nm | |
| Transmitter power density: | < 250 mW/m² | |
| Detection mode: | motion & presence | |
| Detection field: | 4 m x 4 m (emitting spots**) | |
| Min. detection speed: | 5 cm/s to activate detection | |
| Reaction time: | 250 ms | |
| Tilt angle: | 15° – 45° |
