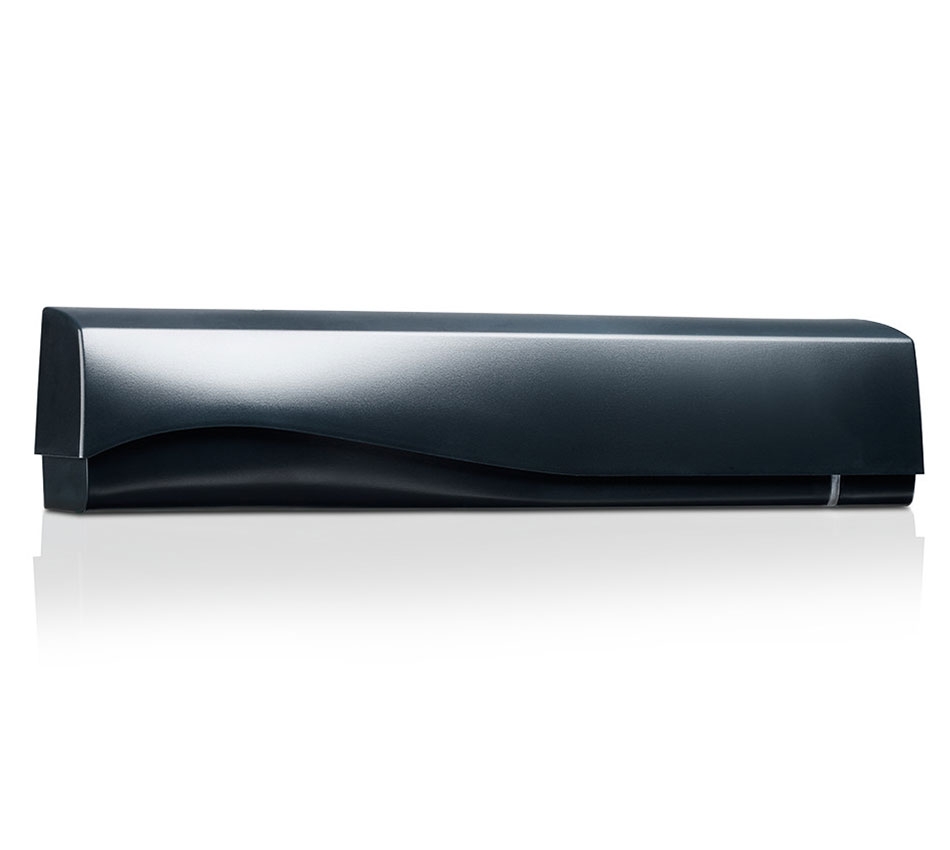

BEA VIO Side Screen Safety Sensor

Name: BEA VIO Side Screen Safety Sensor
Brand: BEA
SKU: VIO-ST
Availability: InStock

From : BEA

£125.00 ex vat

Side screen safety sensor from BEA for automatic sliding doors.

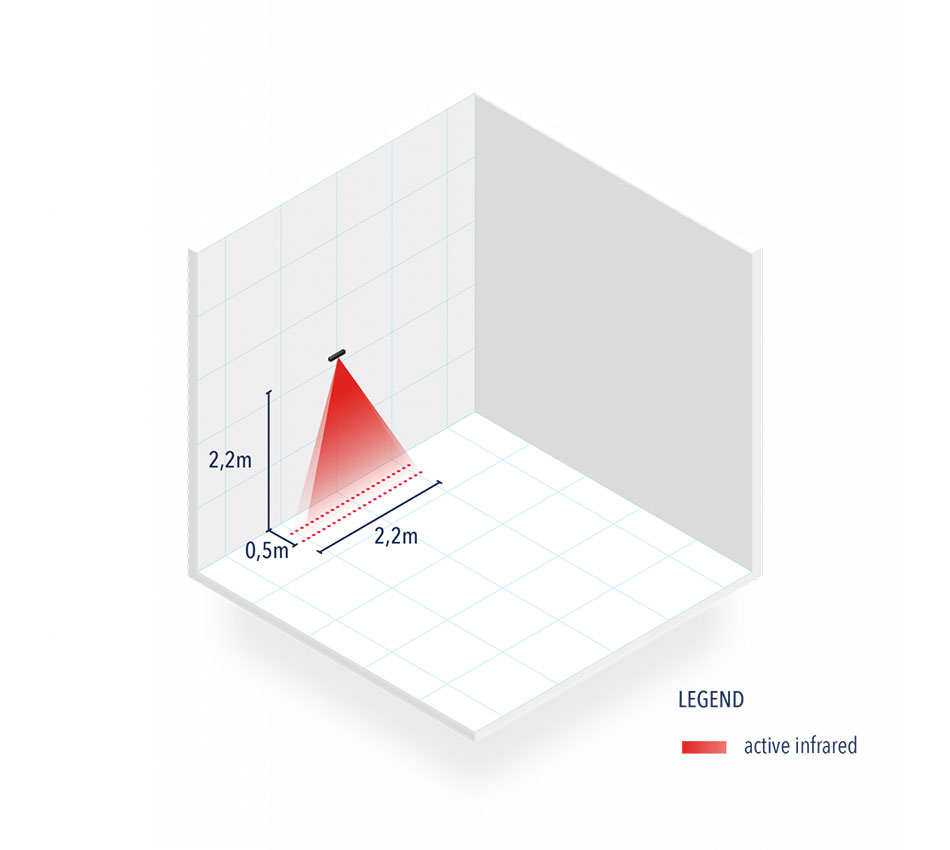

The VIO-ST is a presence sensor made up of a double failsafe active infrared curtain. The three-dimensional area of the infrared curtain, without safety beams, protects people from any contact with the doors.

Trade Customer?

Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Part code: VIO-ST Category: Safety Sensors Tags: BEA Safety Sensor, Infrared, For Sliding Doors Brand: BEA

Side screen safety sensor from BEA for automatic sliding doors.

Features:

Simple adjustments using DIP-Switches
High protection of individuals, thanks to the two 24-infrared spot failsafe curtains (EN 16005)
Optimum performance thanks to high levels of active, self-adapting infrared immunity
Adjustment of the infrared curtain width with the prisms. (curtain of 12 or 24 depending on the prism used)
Mounting height of up to 3 metres, Minimum 1.8 metres
Conforms to:
- MD 2006/42/EC;
- ROHS 2 2001/65/EU;
- EN 16005:2012;
- EN 12978:2009;
- EN IEC 62061:2005 SIL2;
- EN 61496-1:2012 ESPE Type 2;
- EN ISO 13849-1:2008 Pl <<c>> CAT.2

Product Type	Safety Sensor, Swing Door Sensors

Technical

Supply voltage:	12 V – 30 V DC -5%/+10% (to be operated from SELV compatible power supplies only)
Power consumption:	< 1.6 W
Mounting height:	1.8 m to 3 m
Sensitivity of the test input:	< 1 V : Log. L; > 10 V: Log. H (max. 30 V)
Temperature range:	-25 °C to +55 °C
Degree of protection:	IP54
Noise:	< 70 dB
Expected lifetime:	20 years
Norm conformity:	EN 16005:2012; EN 12978:2009; EN IEC 62061:2005 SIL2; EN 61496-1:2012 ESPE Type 2; EN ISO 13849-1:2008 Pl «c» CAT.2 (under the condition that the door control system monitors the sensor at least once per door cycle)
Detection mode:	Presence Typical response time: <256 ms Max. presence time: 30 sec
Technology:	Active infrared with background analysis Spot diameter: 0.1 m (typ) Number of spots: 24 Number of curtains: 2
Angle:	From -4 ° to +4 ° (adjustable)
Output:	Solid-state-relay (free of potential, free of polarity) Max. contact current: 100 mA Max. contact voltage: 42 V AC/DC
Hold time output signal:	0.3 s to 1 s (not adjustable)
Response time on test request:	Typical: < 5 ms
