IXIO-D INDUS Opening and Presence Sensor
£235.65 ex vat
The IXIO-D INDUS combines two technologies – radar and infrared – to achieve a double goal: opening and protection. The IXIO-D INDUS protects automatic doors as well as those operating them. The IXIO-D INDUS radar senses any approaching movement towards the door, while the infrared technology senses the presence of people and objects in the area around the closing zone of the door.
Protecting the door
The radar monitors a large, adjustable area. Its responsiveness makes it ideal for opening and re-opening the door for fork-lift trucks and vehicle traffic. In this way, it helps to prevent the vehicles from colliding into the door, when approaching at a reasonable speed.
Protecting users

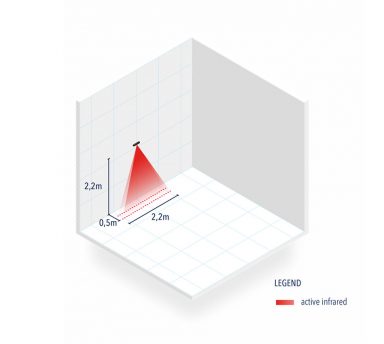

Two curtains of 24 (48 total), high-density infrared spots provide precise presence detection near the
threshold area. Provided on both sides of the door, this additional volumetric protection reduces the door’s hold-time and therefore reduces the opening and closing time of the door.
Position of the curtains
4 red spotlights visible on the floor to adjust the angle of the failsafe curtain.
LCD Screen
A 32-bit microprocessor optimises the processing of information coming from the environment, ensuring a stable performance throughout the year. 48 high-density infrared spotlights from 2 curtains protect users from any contact with the doors.
Technical
| Supply voltage: | 12 V – 24 V AC +/-10% ; 12 V – 30 V DC +/-10% (to be operated from SELV compatible power supplies only) | |
|---|---|---|
| Power consumption: | < 2.5 W | |
| Mounting height: | 2 m to 4 m (local regulations may have an impact on the acceptable mounting height) | |
| Temperature range: | -25°C to +55°C; 0-95% relative humidity, non condensing | |
| Degree of protection: | IP54 | |
| Noise: | < 70 dB | |
| Expected lifetime: | 20 years | |
| Detection mode: | Motion Min. detection speed: 5 cm/s | Presence Typical response time: < 200 ms (max. 500 ms) |
| Technology: | Microwave doppler radar Transmitter frequency: 24.150 GHz Transmitter radiated power: < 20 dBm EIRP Transmitter power density: < 5 mW/cm2 | Active infrared with background analysis Spot: 5 cm x 5 cm (typ) Number of spots: max. 24 per curtain Number of curtains: 2 |
| Output: | Solid-state-relay (potential and polarity free) Max. contact current: 100 mA Max. contact voltage: 42 V AC/DC | Solid-state-relay (potential and polarity free) Max. contact current: 100 mA Max. contact voltage: 42 V AC/DC Holdtime: 0.3 to 1 s |
