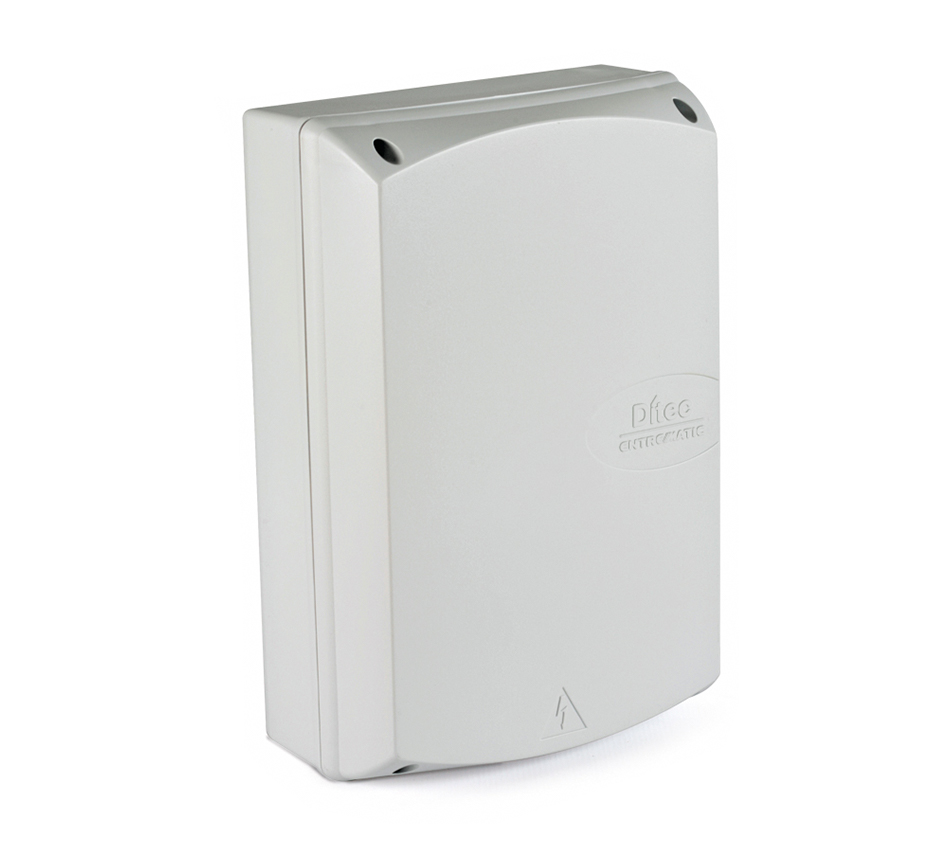

LCU30H – 24 V DC Control Panel

Name: LCU30H - 24 V DC Control Panel
Brand: Ditec Entrematic
SKU: LCU30H
Availability: InStock

From : Ditec Entrematic

£225.23 ex vat

Trade Customer?

Looking to order in BULK?

Give us a call today on 01767 315 402 where we can quote you directly.

Part code: LCU30H Categories: Control Panels, Accessories, Accessories, Accessories Brand: Ditec Entrematic

Multifunction control panel for one or two, 24 V DC motors up to 6 A each with a 433 MHz radio.

Designed for swing gates, compatible motors: PWR 25H, PWR 35H, FACIL 3H, ARC BH

The LCU30H control panel makes it easy to use the display to configure position and speed at any time, allowing adjustment for acceleration, deceleration, start time, slowdown distance and approach speed during opening and closing.

Integrated diagnostics with counters and history for the most recent alarms, visible on the panel display.

Technical

Motors:	1 or 2, 24 V DC motors with built-in radio.
Radio Frequency:	433.92 MHz standard 868.65 MHz with ZENPRS or ZENPR2
433MHz/868MHz interchangable receiver module:
Mains Power Supply:	230 V – 50/60Hz
Motor Power Supply:	24 V DC / 2 x 6A
Accessories power supply:	24 V DC/0.3 A (0.5 A max.)
Stroke control:	Virtual encoder
Limit switch provision:
Operating temperature:	-20°C / + 55°C in standard conditions -35°C / +55°C with NIO enabled
Protection level:	IP55
Product dimensions (mm):	187x261x105
