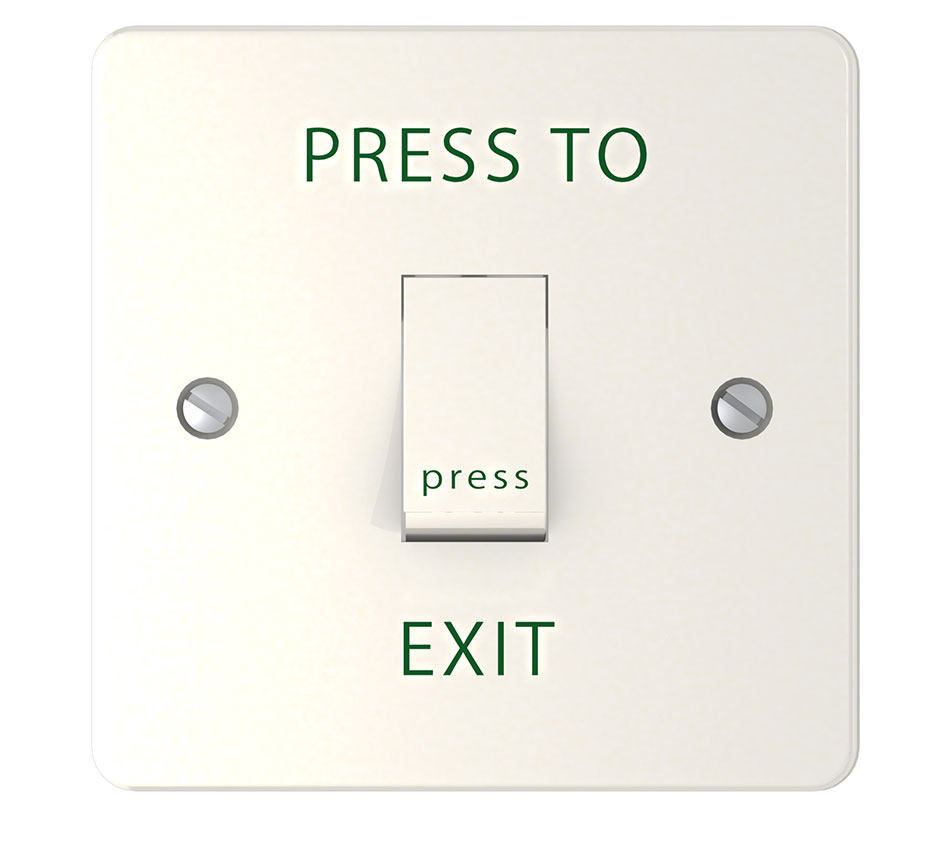

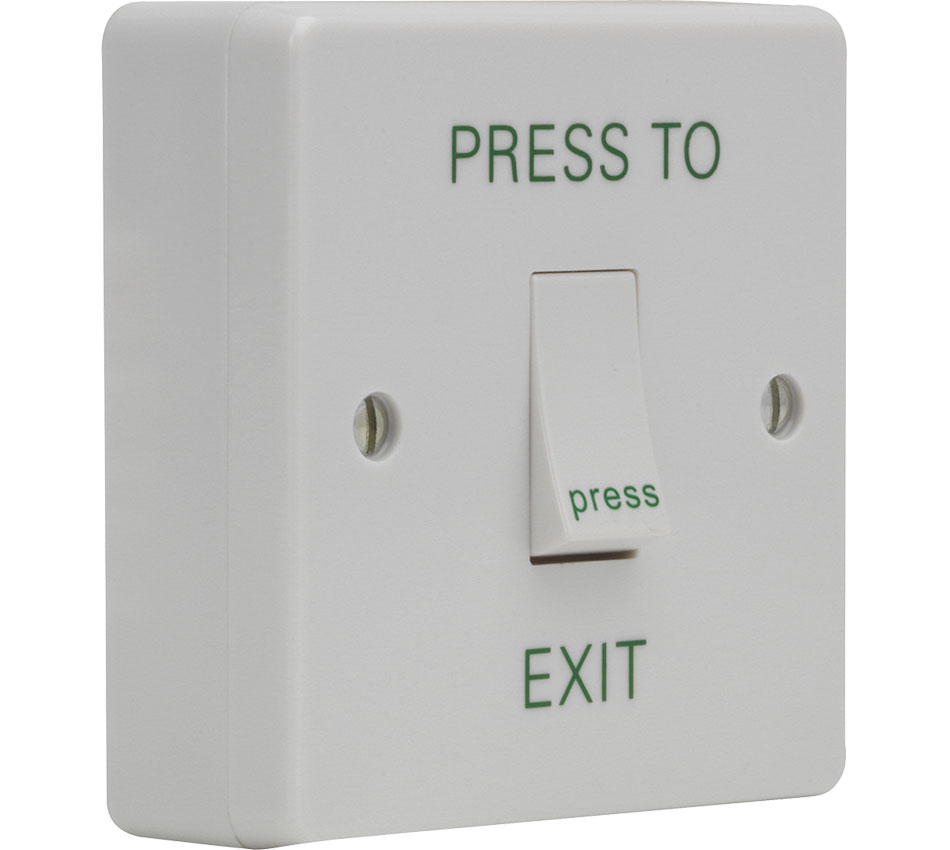

Press To Exit Plastic Low Traffic Switch
£11.98 ex vat
- Momentary contact
- Surface mount
- Economical
- Suitable for low traffic environments only
The 0664 is an economical egress solution to control low traffic doors. The switch assembly is moulded in plastic and has screw terminals.
The switch has a momentary contact and provides a common, normally open and normally closed terminal.

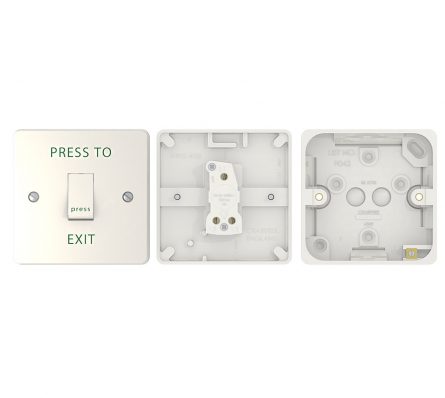

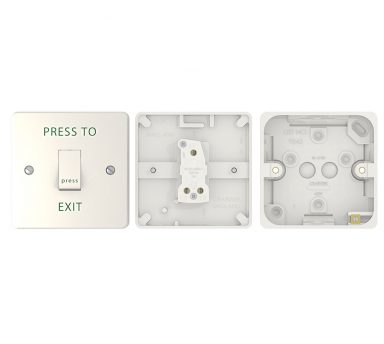

This switch comes complete with a moulded surface housing with various knock outs for fixing and cable entry.
| Contact | Momentary |
|---|---|
| Motif | Press to Exit |
| Poles | Single Pole |
| Size | Single Gang |
| Illuminated | No |
Technical
Electrical
| Insulation Resistance | 1GΩ |
Mechanical
| Contact Bounce | 5ms |
| Operating Force | 7N |
Environmental
| Operating Temperature Range | -40°C to +125°C |
| Impact Rating | 20J |
